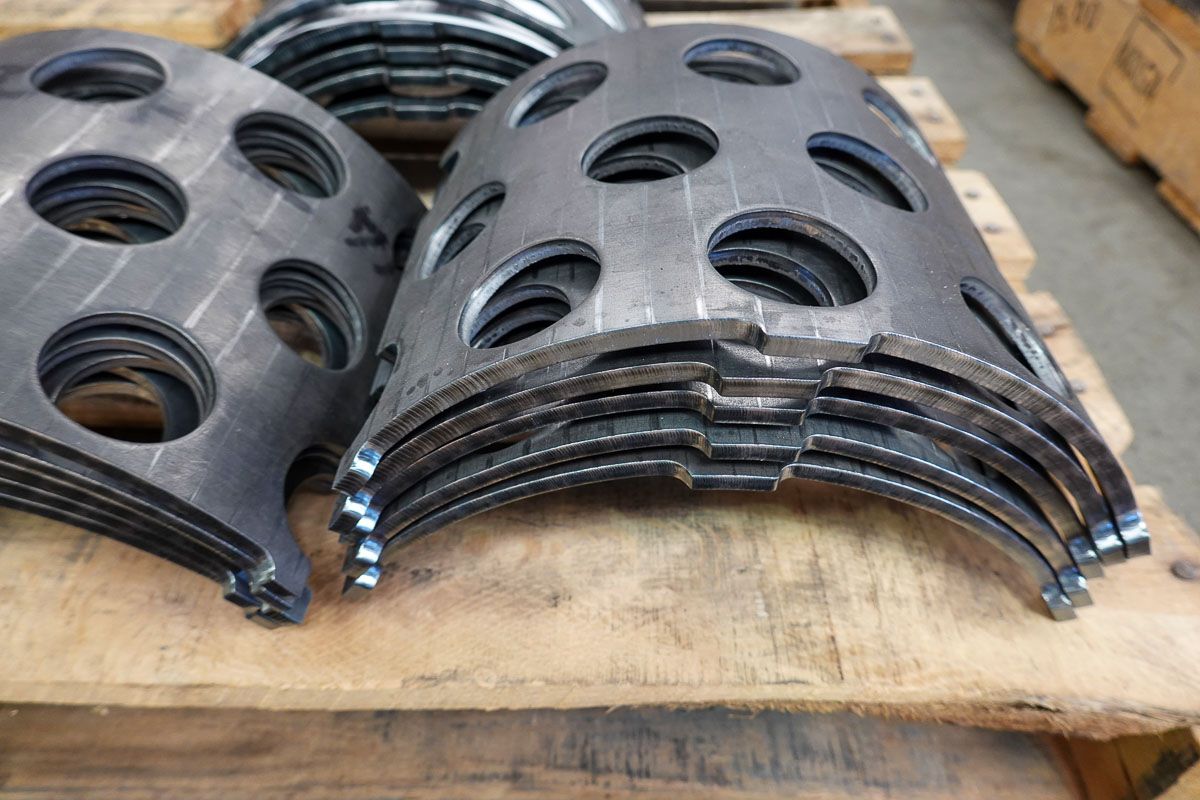

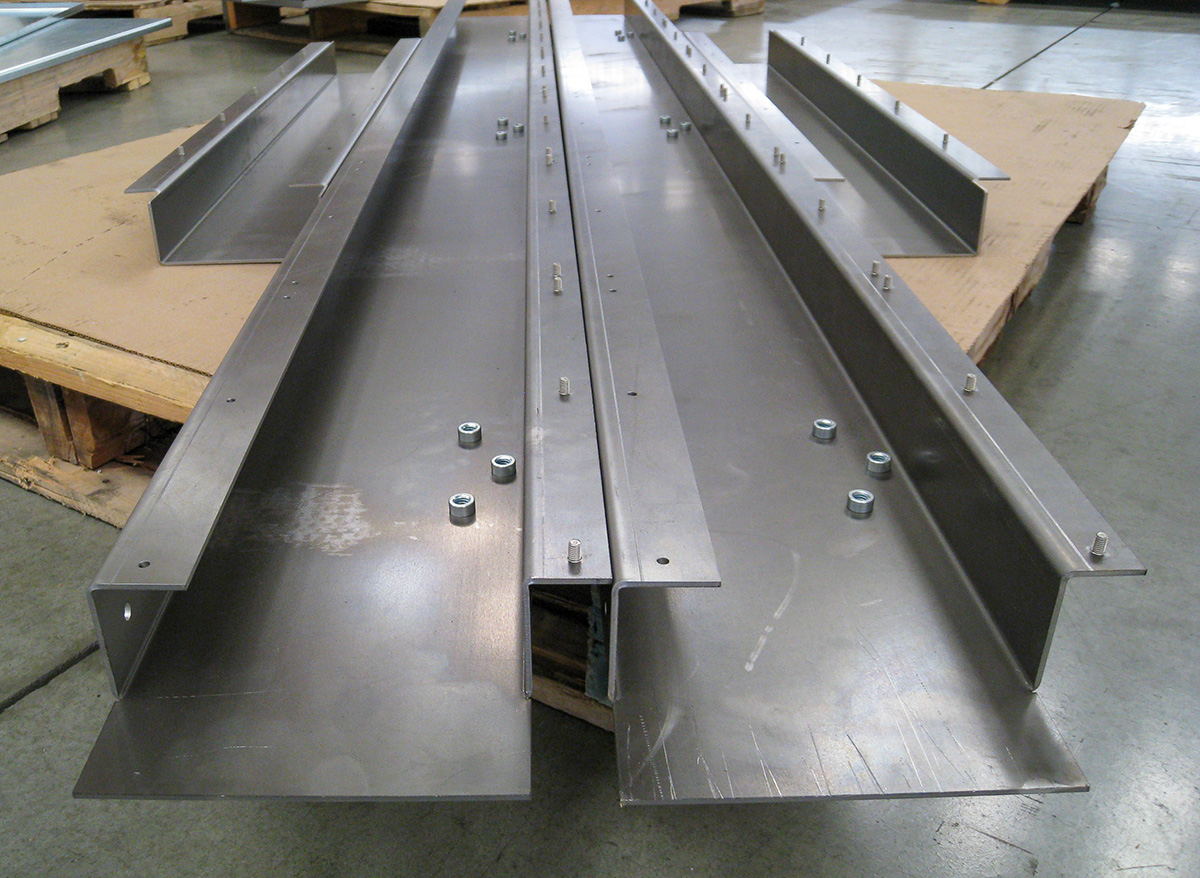

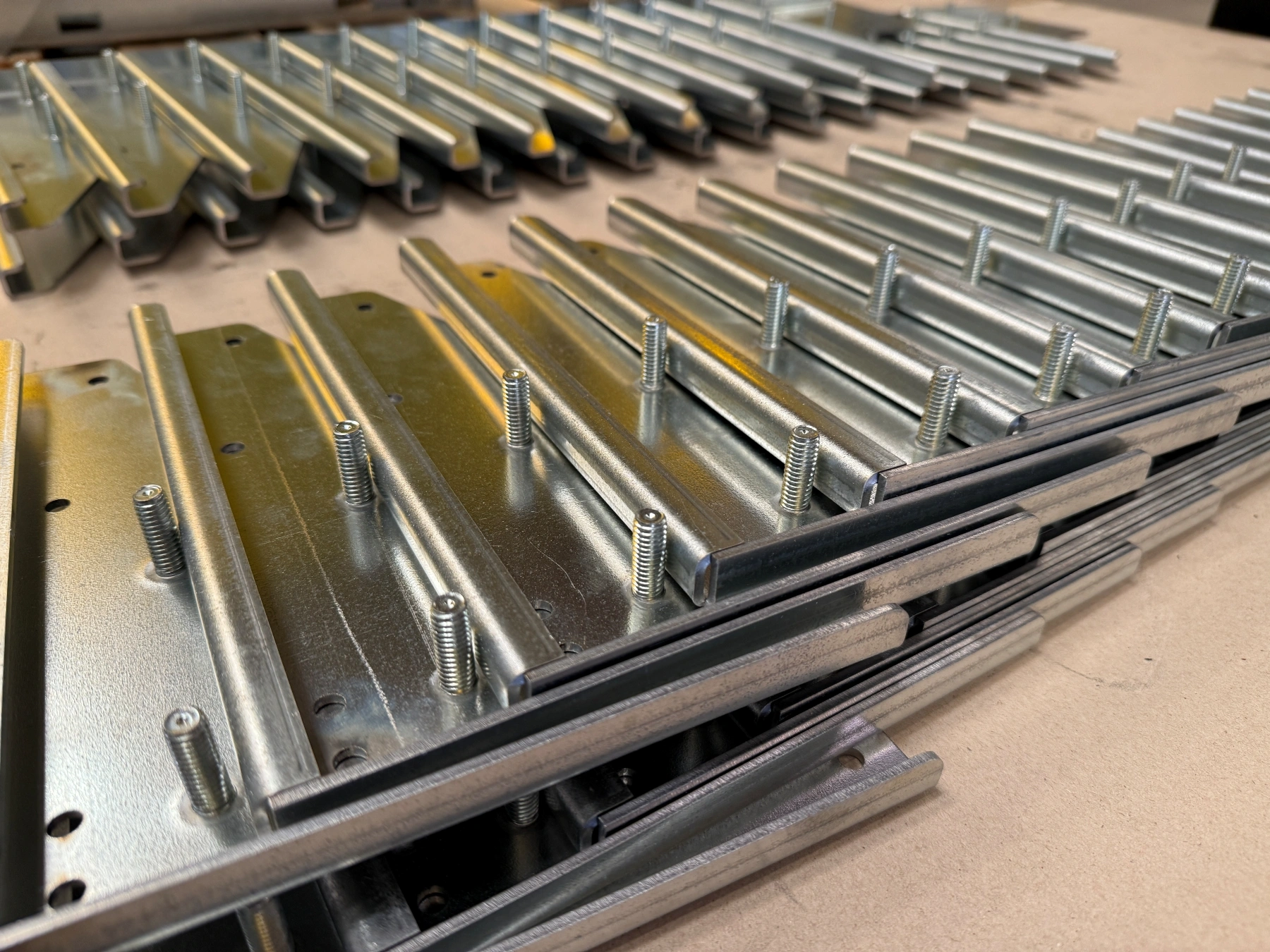

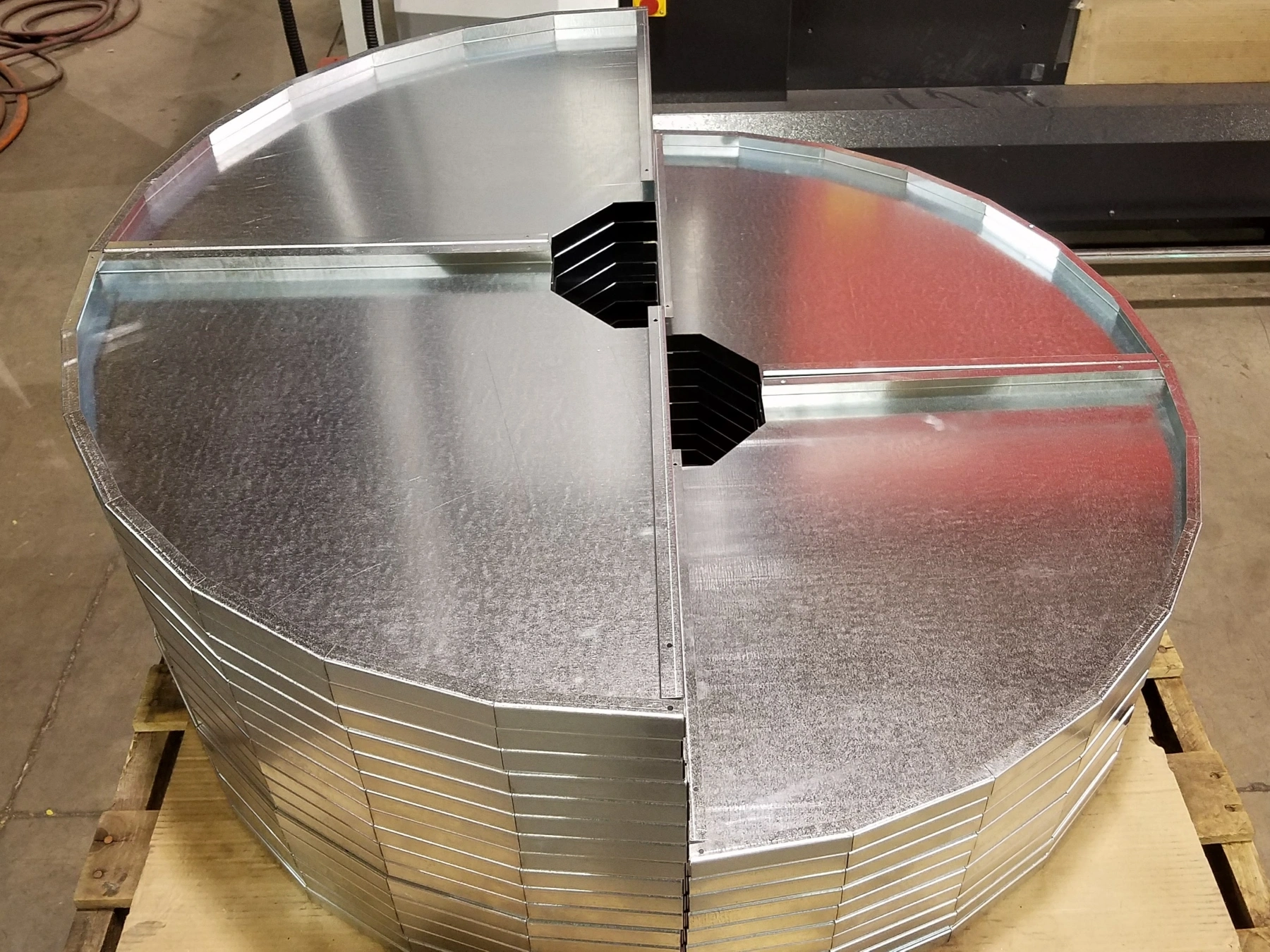

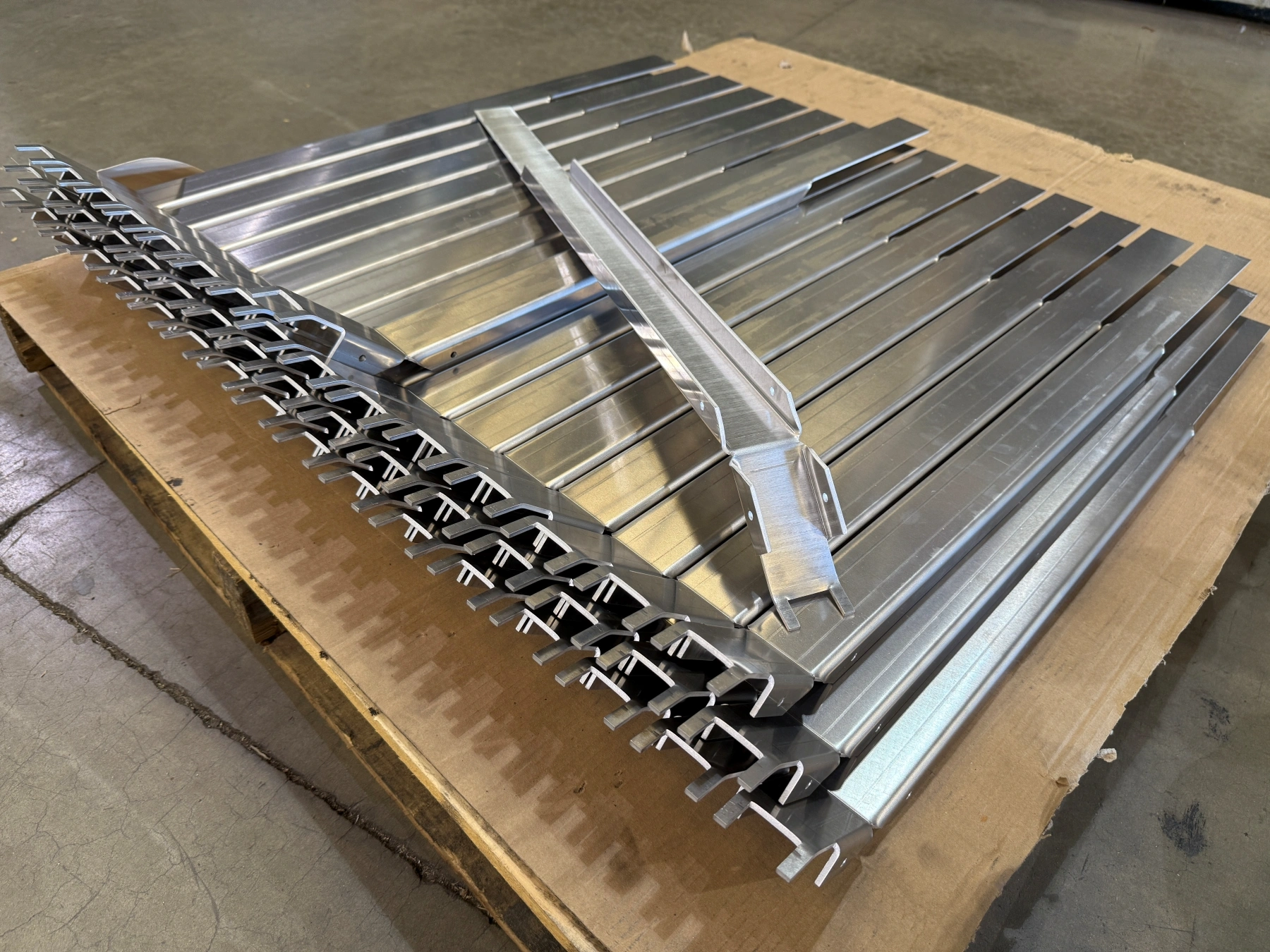

CNC Press Brake Formed 22 GA Galvanized Sheet Metal Formed 1/2 inch plate Forming 12 GA Formed 12 GA Stainless Steel Strut 1/4" Carbon Steel Plate, Punched, Plasma Cut and Bump Formed in a Press Brake Formed Aluminum Box Galvanized ShelfForming 3/8 ChannelsFormed 16GA CR Machine Guard

Can't Find What You're Looking for?

We offer a wide range of Manufacturing Services,
Welding Systems and Trailers.

Large Metal Pallets made from A500 Grade B rectangle and square tubing

Contact Us

CNC Press Brake Forming & Bending



Our precision CNC Press Brakes are equipped with the latest in multi-axis CNC controls.  In addition we use Hardened & Precision Ground European Style tooling.  The hardening increases the tools life and the precision grinding increases the forming accuracy.

Machine setup and programing is easily accomplished through the touch screen computer controller.  Once programmed, the multi-axis back gauge and bend angle adjustments automatically sequence from one setting to the next after each bend.  This significantly increases throughput and maintains part accuracy and precision.



CNC Press Brake Models & Capacities

 Part sizes range from 22GA to 1" Plate and lengths up to 14'
  • Cincinnati CB 3 Axis Control,     35  Ton x 4'
  • Amada HDS   8 Axis Control,     88  Ton x 8'
  • Amada FBD   8 Axis Control,    135 Ton x 10'
  • Amada HG    10 Axis Control,   190  Ton x 10'
  • Amada HFB   8 Axis Control,   240 Ton x 14'
