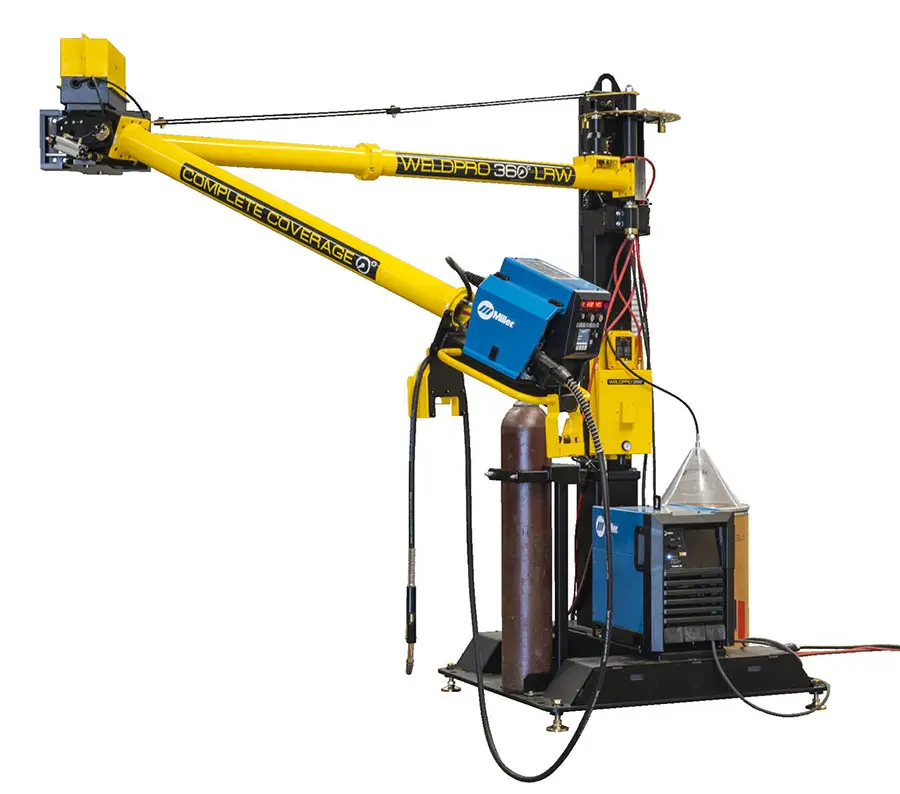

WeldPro 360 LRW-18 MIG Welding Boom Arm

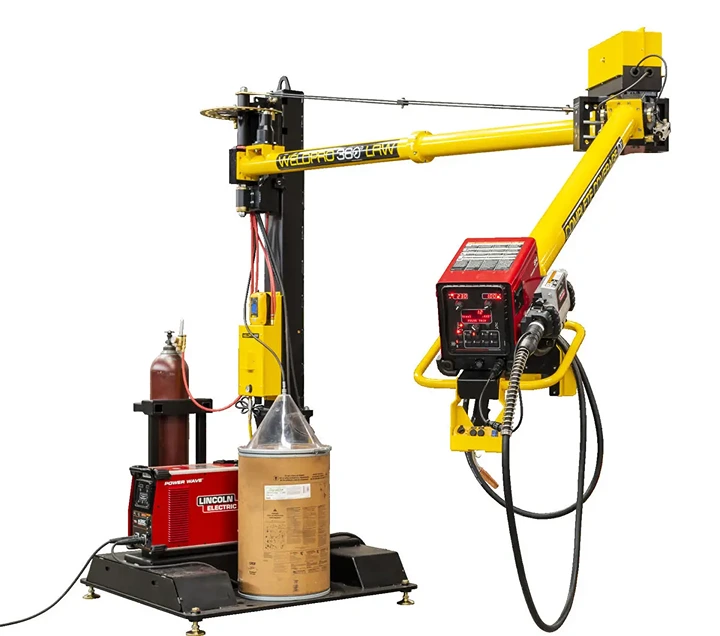

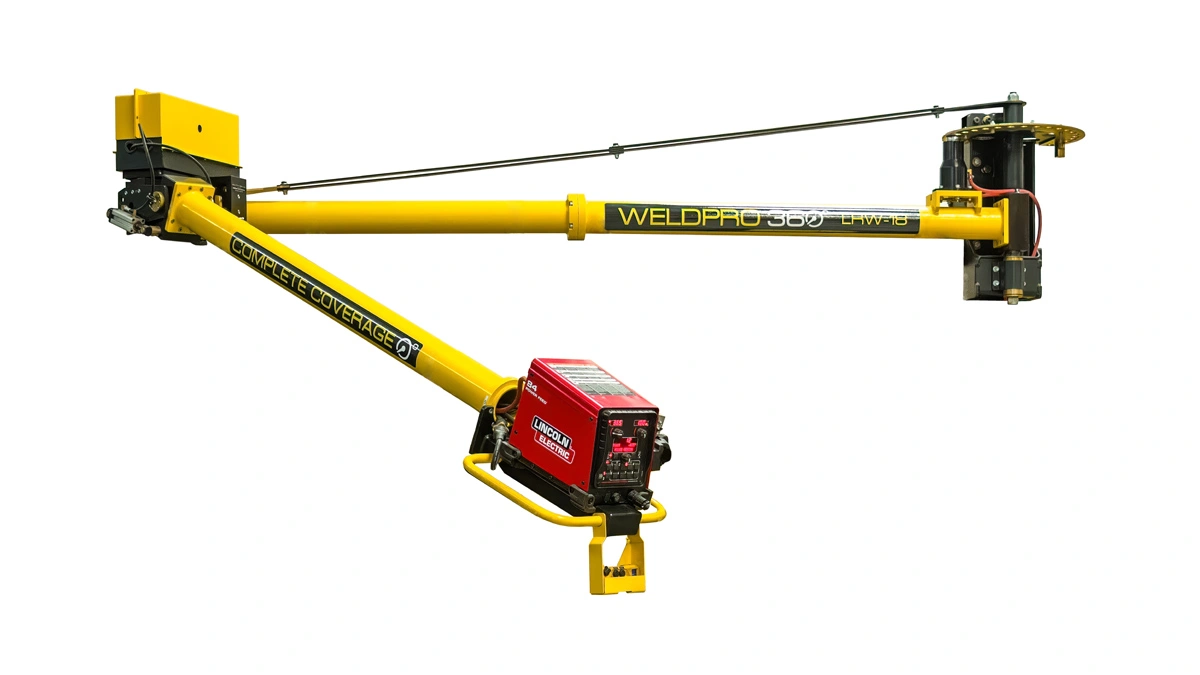

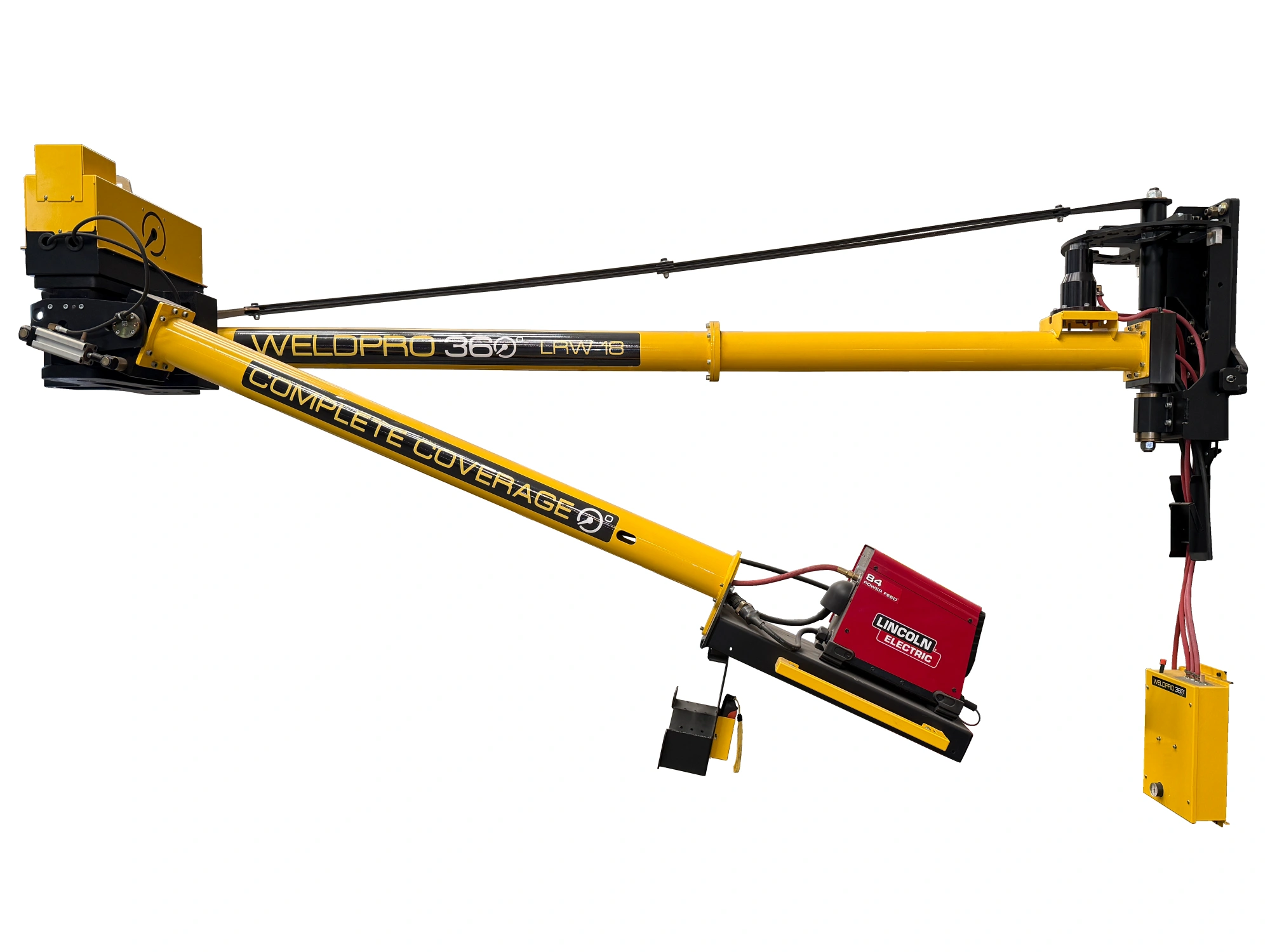

WeldPro 360 LRW-18 MIG Welding Boom Arm with a Lincoln wire feeder installed
WeldPro 360 LRW-18 MIG Welding Boom Arm with a Lincoln wire feeder installed

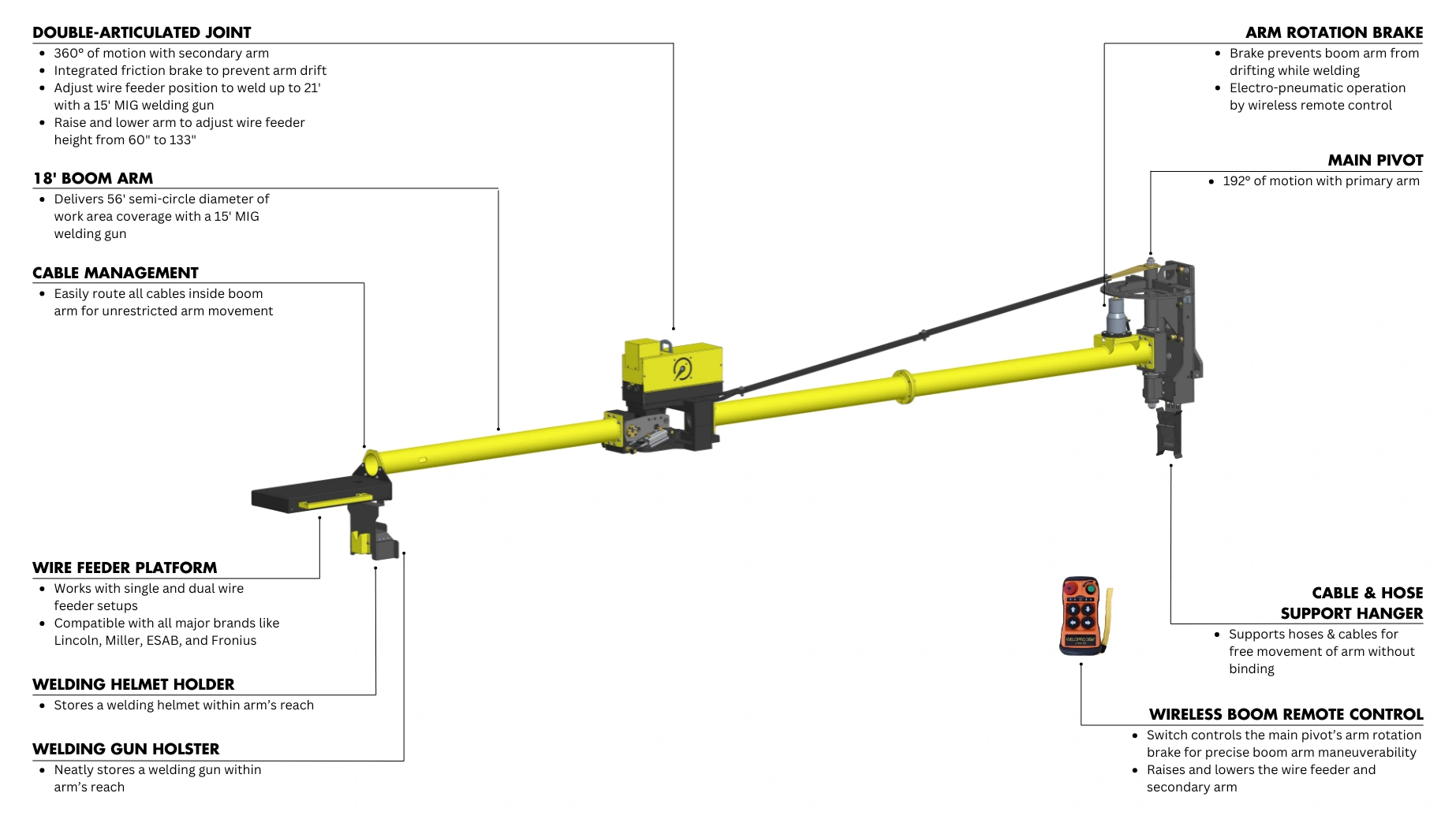

Feature Callout of a WeldPro 360 LRW-18 MIG Welding Boom Arm mounted on a Freestanding Column

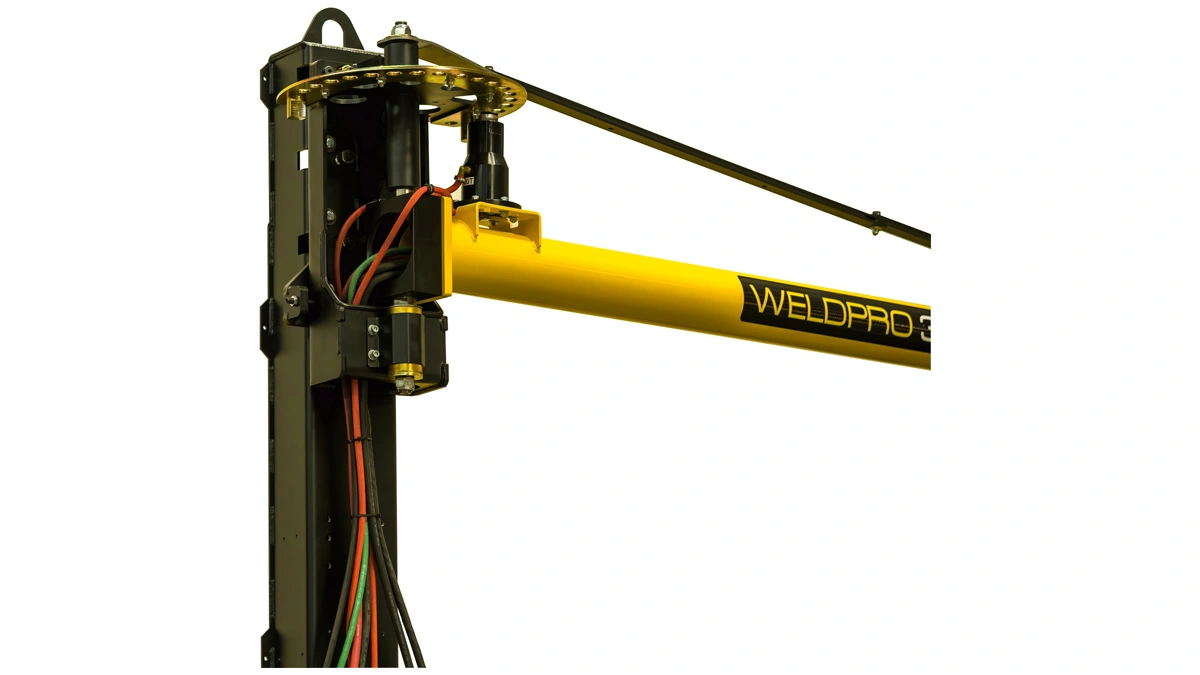

Close up of the main pivot assembly of the WeldPro 360 LRW-18 MIG Welding Boom Arm
Close up of the articulated joint assembly of the WeldPro 360 LRW-18 MIG Welding Boom Arm

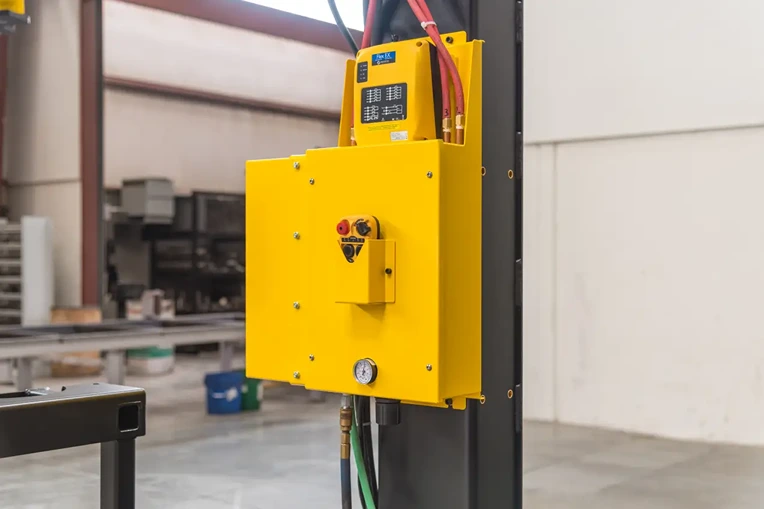

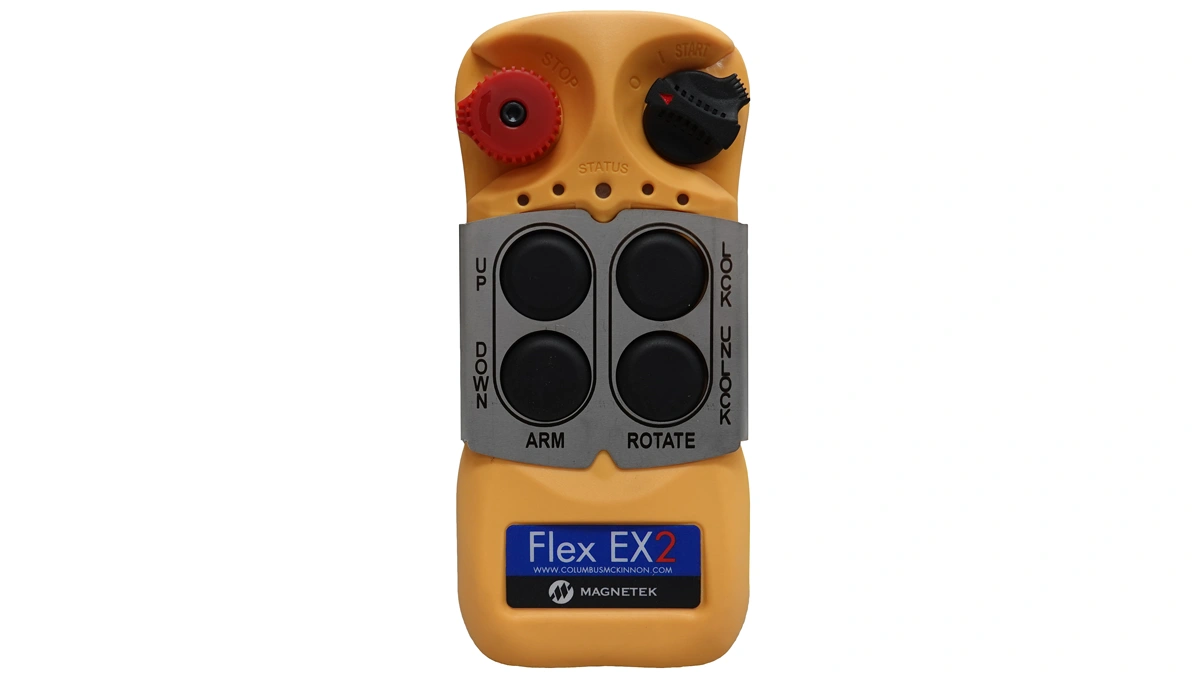

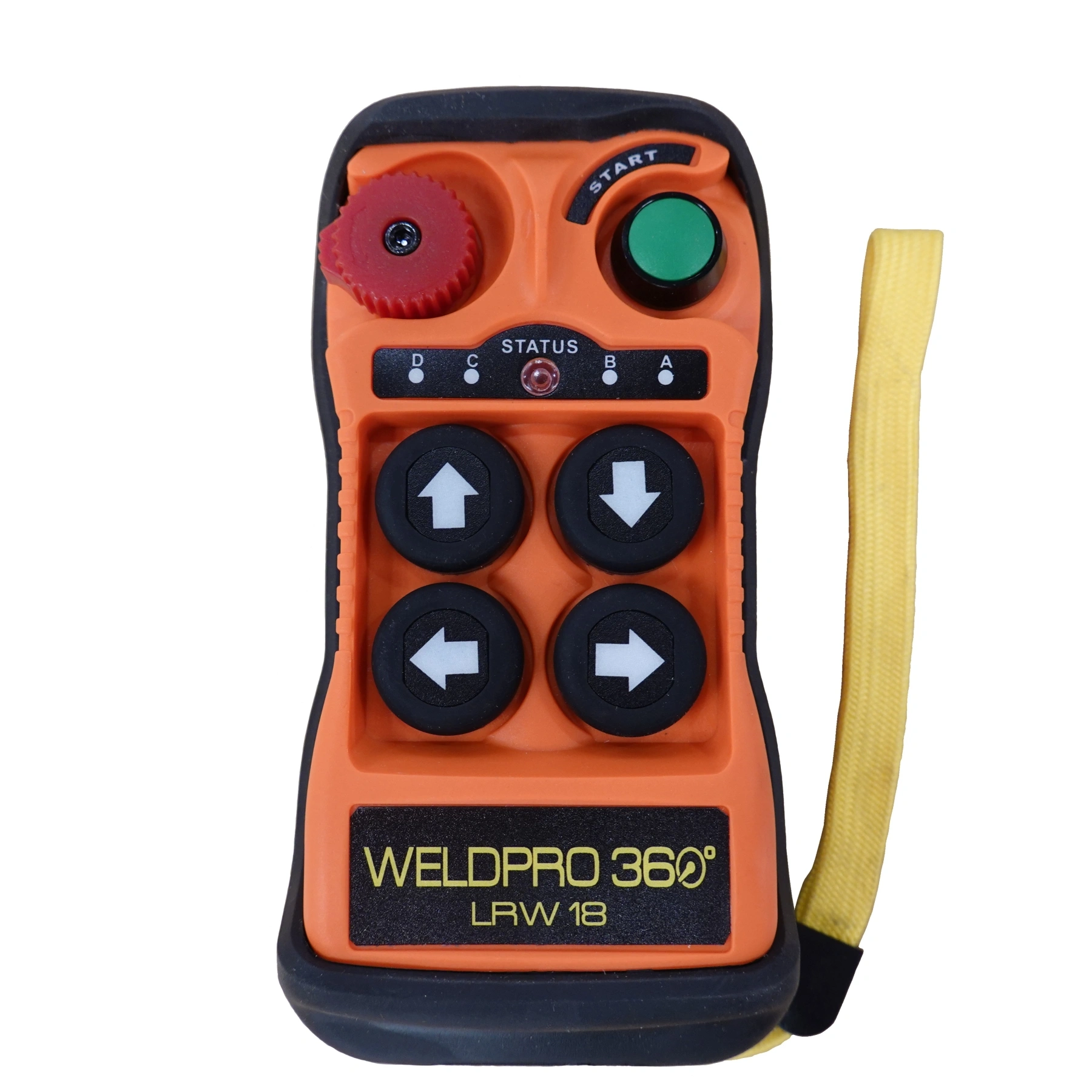

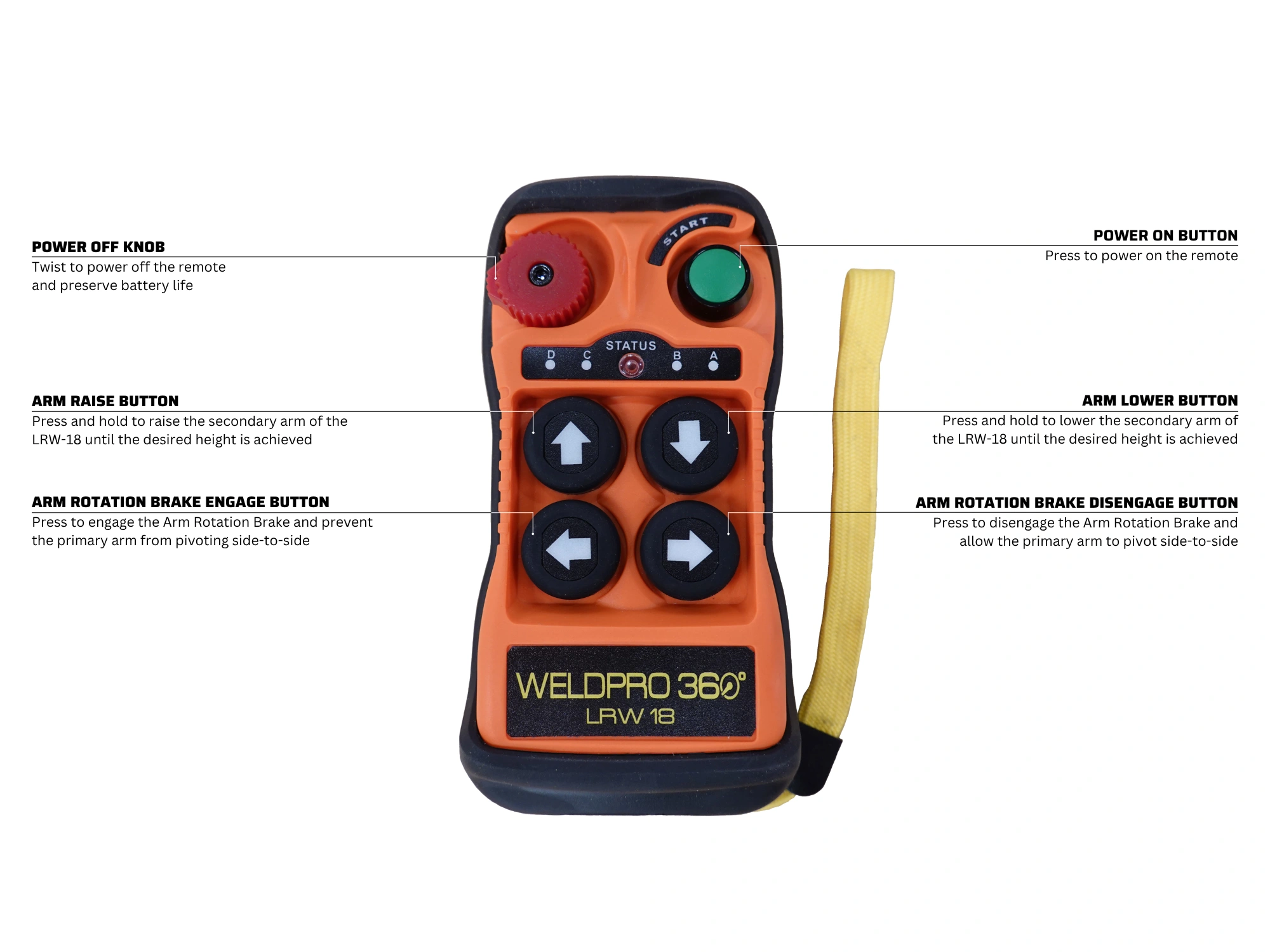

Close up of the wireless remote control for the WeldPro 360 LRW-18 MIG Welding Boom Arm

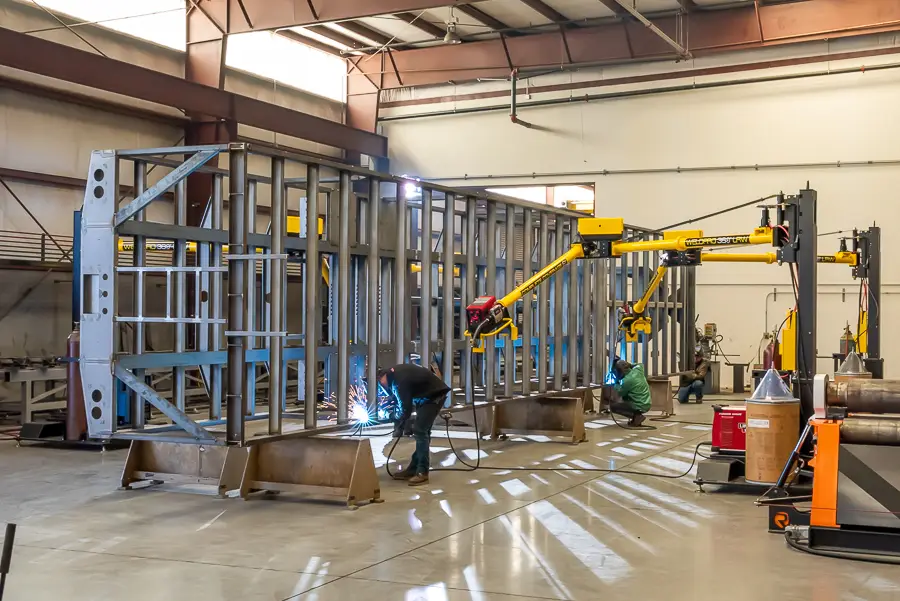

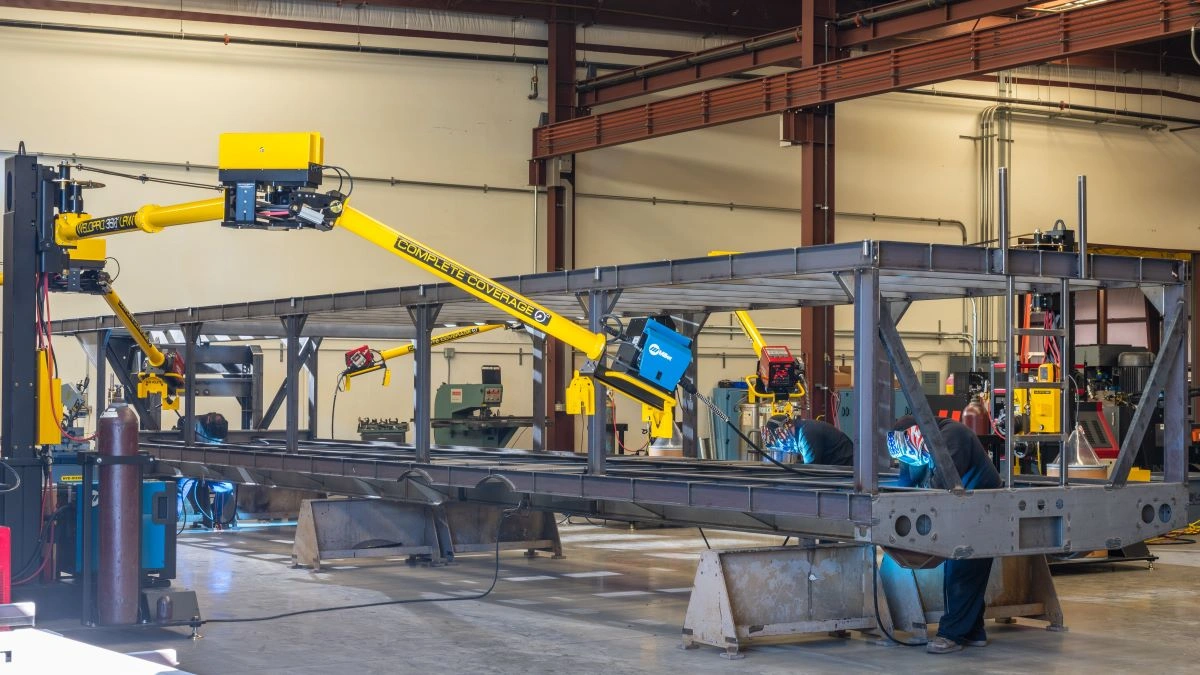

A large trailer weldment being welded using WeldPro 360 LRW-18 MIG Welding Boom Arms

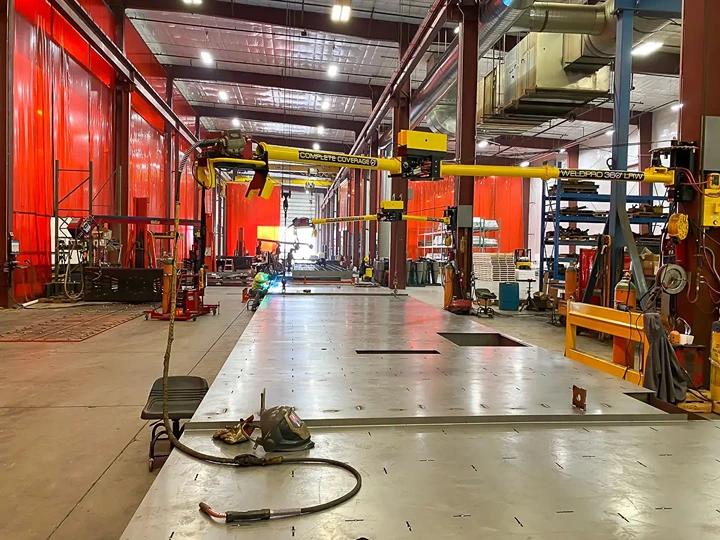

A large frame weldment being welded using a WeldPro 360 LRW-18 MIG Welding Boom Arm

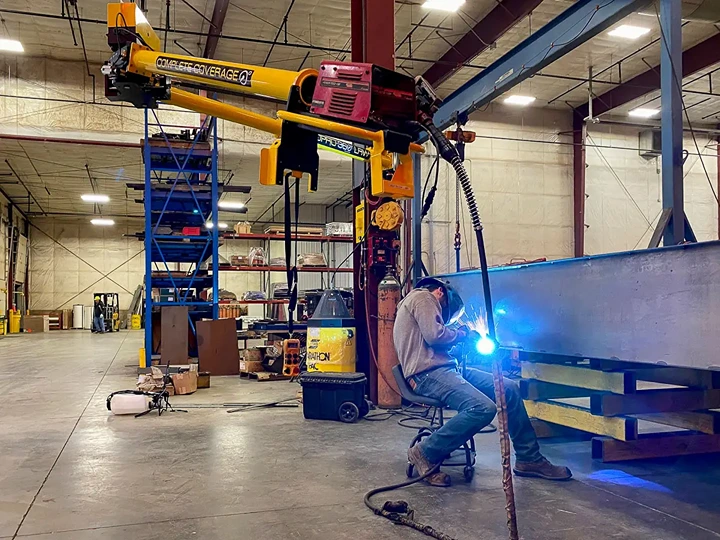

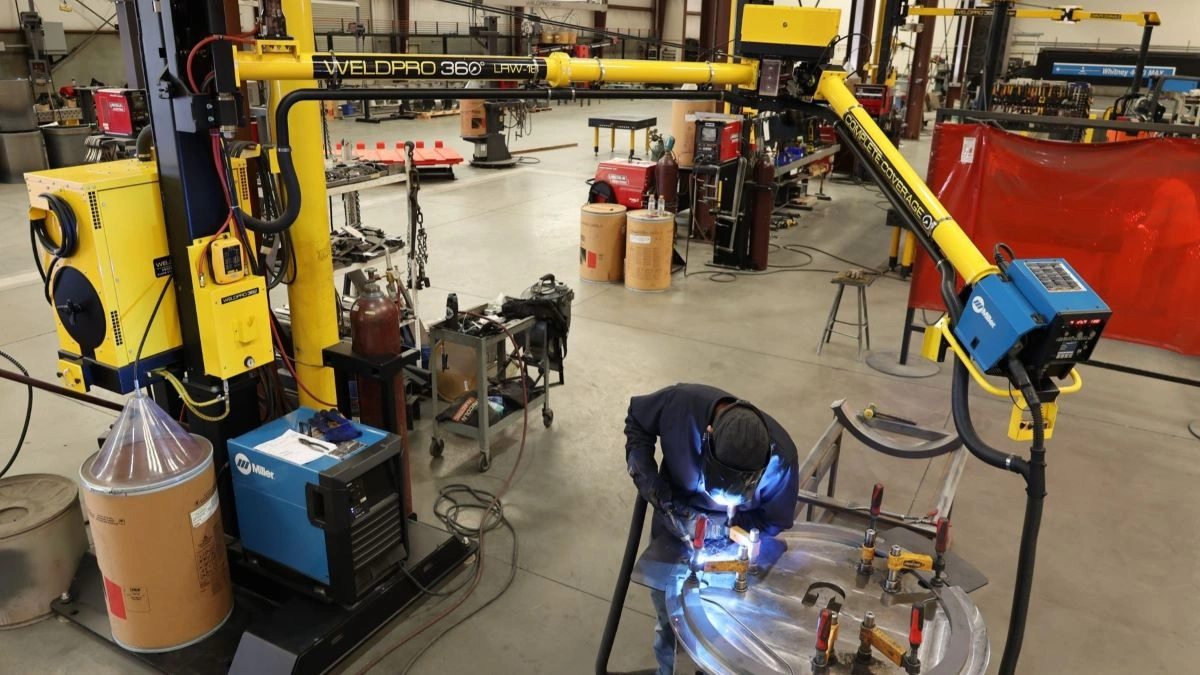

A small weldment being tack welded using a WeldPro 360 LRW-18 MIG Welding Boom Arm

The WeldPro 360 LRW-18 boom arm is the flagship of the WeldPro 360 lineup. It delivers exceptional performance with its 18’ reach and unique, double-articulated design. The WP360 LRW-18 differentiates itself from all other competitors by adding vertical motion to the secondary arm. If you need to weld both close to the floor as well as at extended heights—more than 10’ above the floor—then the WP360 LRW-18 is a great choice.

The standard mounting height for the WP360 LRW-18 arm is 8’ to the bottom of the arm. The secondary arm raises vertically 73” with the push of a button, stopping anywhere in its range. At the standard arm mounting height, the wire feeder height ranges from a comfortable 60” above the floor—for easy access to welding controls—to an impressive 133” for very large weldments. The double-articulation capabilities of this unique arm, allow you to fold the secondary arm back alongside of the primary arm (effectively shortening the arm to 10’) and quickly maneuver around or over obstructions.

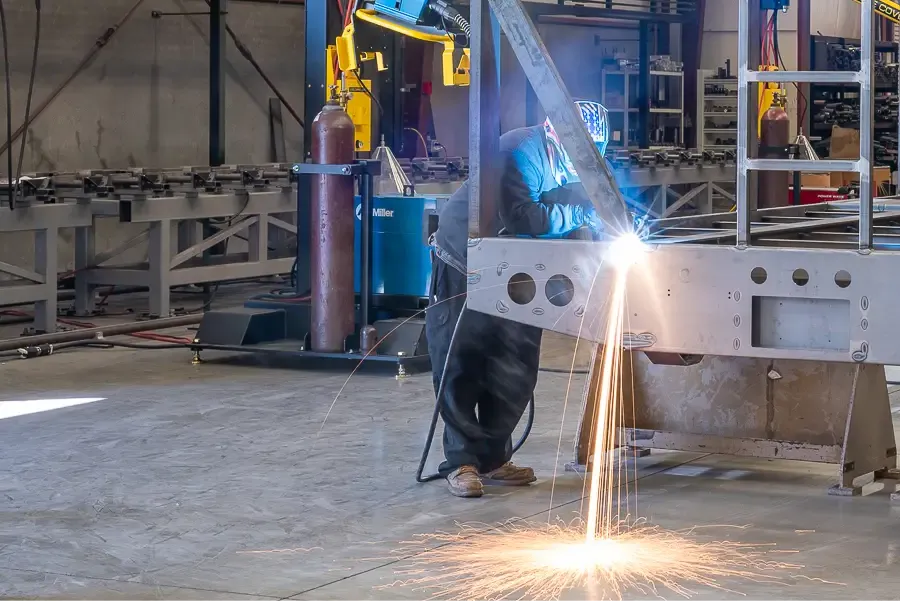

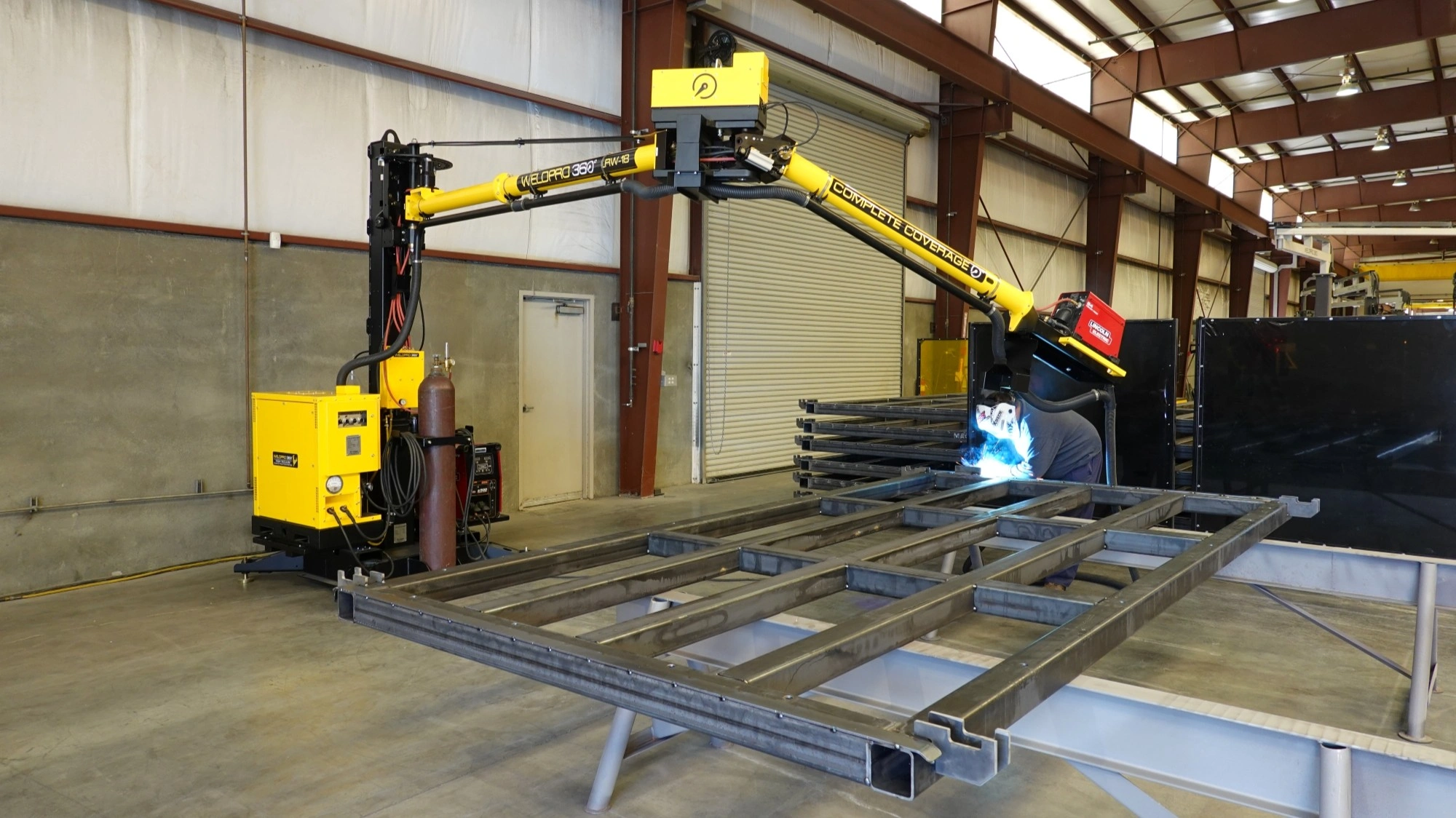

Welder performing MIG weld on a large pallet weldment with the WP360 LRW-18 MIG welding boom arm.

The primary arm is 10’ long and the secondary arm is 8’ long. The primary arm rotates 192° around the main pivot point, providing complete welding coverage within a 56’ diameter semi-circular welding zone WeldPro 360 boom arm when using a 15’ MIG welding gun. The secondary arm rotates a full 360° about the end of the primary arm and eliminates all unreachable dead zones, common to single-articulated, straight-arm booms.

Create clean and organized welding cells by routing all hoses and cables within the interior of the WP360 LRW-18’s welding arm—no more unsightly cables and hoses hanging from the arm or laying on the shop floor creating a safety hazard. The primary arm incorporates an electrically controlled, positive stop rotation brake and the secondary arm has a no touch friction brake to hold the entire arm in position. Ball bearing pivot points make repositioning the arm an almost effortless task, moving from position to position in mere seconds.

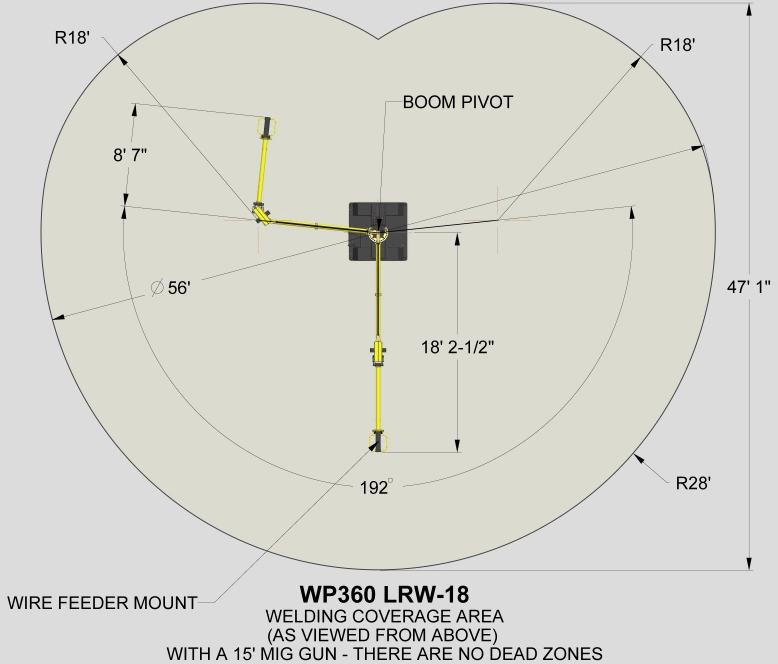

Coverage area of an LRW-18 welding boom arm, shown from above

With the ability to mount wire feeders from any supplier of choice, you can place the necessary welding controls right where the operator is working, no more wasted time going back and forth to the welding machine to make adjustments to the weld process.

When installing the WP360 LRW-18 arm, there are five basic options available from which to choose, giving you the ability to tailor your installation for maximum return on investment. The options range from a wide-open, do-it-yourself approach, to a fully engineered and ready to install solution, using readily available, WeldPro 360 designed and engineered components.

Install a WeldPro 360 LRW-18 MIG welding boom arm in your shop and like hundreds of other shops, you will see your productivity soar!





Benefits

  • Increased weld productivity
  • Complete coverage of the welding area with no dead zones
  • With the elevating secondary arm, welding is possible from floor level to an impressive 21' height (using a standard 15' MIG welding gun)
  • Quickly move from weld to weld with minimal effort
  • Excels at over-height weldments
  • Clean, organized weld cell with no unsightly dangling cables or hoses
  • Improved safety through reduced trip hazards and minimized operator strain

Features

  • 18’ long double-articulated boom with elevating secondary arm
  • 192° primary arm rotation with electrically switched, positive-rotation brake
  • Secondary arm rotates 360° around the end of the primary arm
  • Secondary arm rotation uses a touchless, automatic rotation brake
  • Secondary arm raises the wire feeder vertically 73" with the push of a button
  • All cables and hoses are routed inside the arm tubes
  • Built-in weld gun cable holster stores the weld gun when not in use
  • Durable, safety-yellow powder-coated finish for high visibility and safe operation

Specifications

Boom Arm Length: 18 ft. (10-ft. Primary Arm, 8-ft. Secondary Arm)
Recommended Arm Mounting Height: 8 ft. (10-ft. Option Available)
Boom Arm Weight: 461 lbs.
Weight Carrying Capacity (Wire Feeder): 83 lbs. (@ 100 PSI Air Pressure)
Power Requirement: 120 Volt
Compressed Air Requirement: 90 PSI Minimum

*Please note that product specifications are subject to change as we continuously improve our products.

Boom Mounting Options

Option 1
Customer-Designed Solution

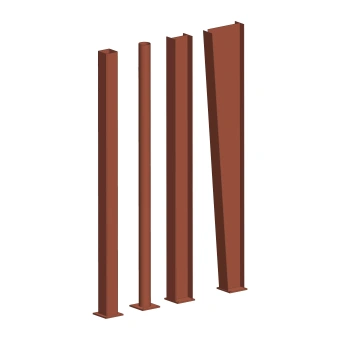

Several structural building columns

Install your WeldPro 360 boom arm with an in-house designed and built solution

Option 2
Tapered Column Mounts

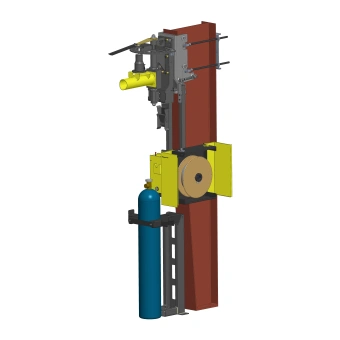

A WeldPro 360 boom arm and welding equipment mounted to a tapered building column using WeldPro 360 Tapered Column Mounts

Install your WeldPro 360 boom arm to a tapered column using WeldPro 360 purchased mounts

Option 3
Straight Column Mounts

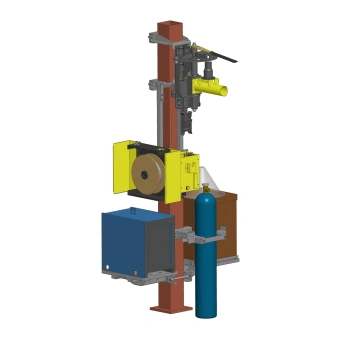

A WeldPro 360 boom arm and welding equipment mounted to a straight building column using WeldPro 360 Straight Column Mounts

Install your WeldPro 360 boom arm to a straight building column using WeldPro 360 purchased mounts

Option 4
Floor-Mounted Column

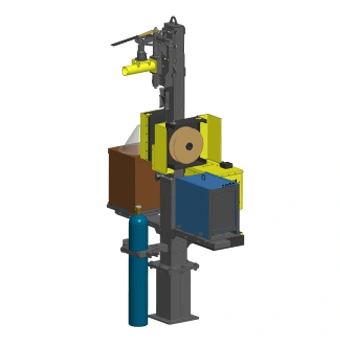

A WeldPro 360 boom arm and welding equipment mounted to a WeldPro 360 Floor-Mounted Column

Install your WeldPro 360 boom arm to a WeldPro 360 Floor-Mounted Column anywhere in your shop

Option 5

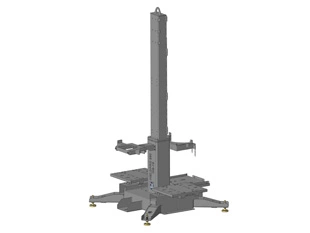

Freestanding Column

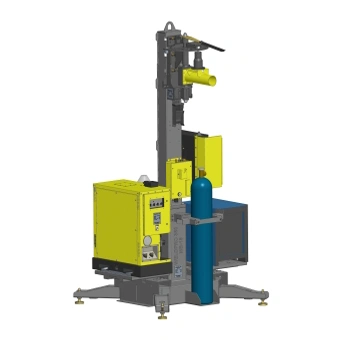

A WeldPro 360 boom arm and welding equipment mounted to a WeldPro 360 Freestanding Column

Install your WeldPro 360 boom arm to a self-contained WeldPro 360 Freestanding Column with fast setup and built-in portability

Learn More About Mounting Options

Getting the most out of a WeldPro 360 weld boom requires a well thought out installation. Click below to explore the available options.

Learn More

Welding Equipment Accessories

Equipment Platform Mount

A Lincoln welding power supply mounted to a WeldPro 360 Freestanding Column

Compatible with major brands like Lincoln, Miller, ESAB, and Fronius

Gas Cylinder Mount

A Lincoln welding power supply mounted to a WeldPro 360 Freestanding Column

Safely secure inert gas

Bulk Wire Mount

A Lincoln welding power supply mounted to a WeldPro 360 Freestanding Column

Compatible with wire drums and boxes

Wire Spool Enclosure

A Lincoln welding power supply mounted to a WeldPro 360 Freestanding Column

Compatible with spools up to 60 lbs.

Additional Resources

Brochure


WeldPro 360 LRW-18 Brochure

Options & Specs


WeldPro 360 LRW-18 Options, Dimensions

Coverage Area


WeldPro 360 LRW-18 Coverage Area

Other Welding Boom Arms

WP360 LRW-18P

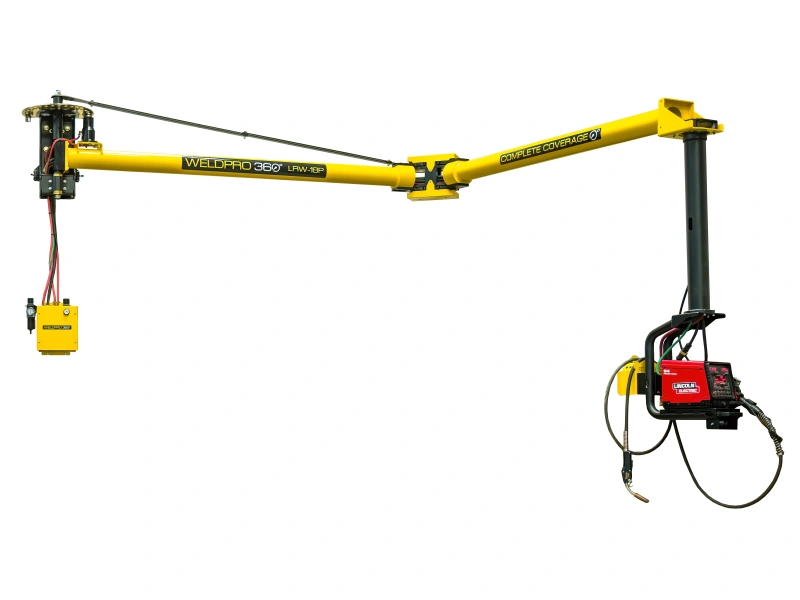

WeldPro 360 LRW-18P MIG Welding Boom Arm

WP360 LRW-10ML

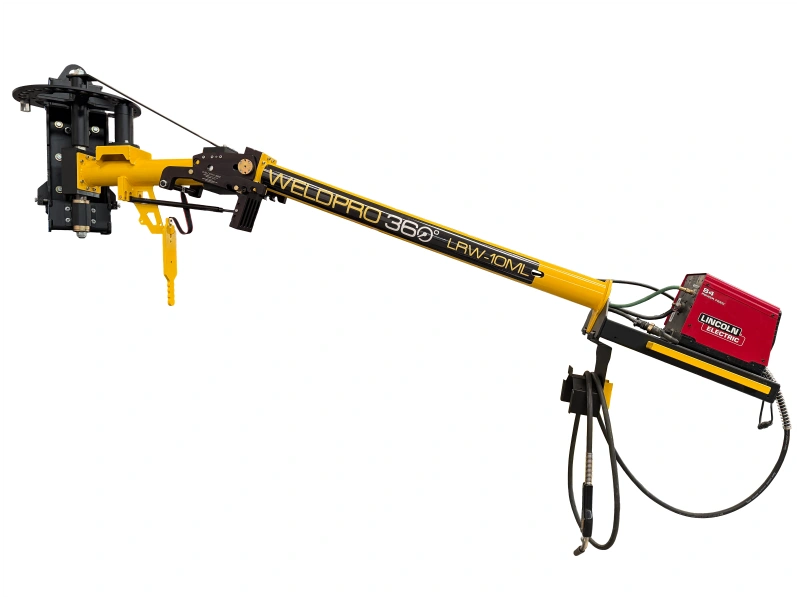

WeldPro 360 LRW-10ML MIG Welding Boom Arm
