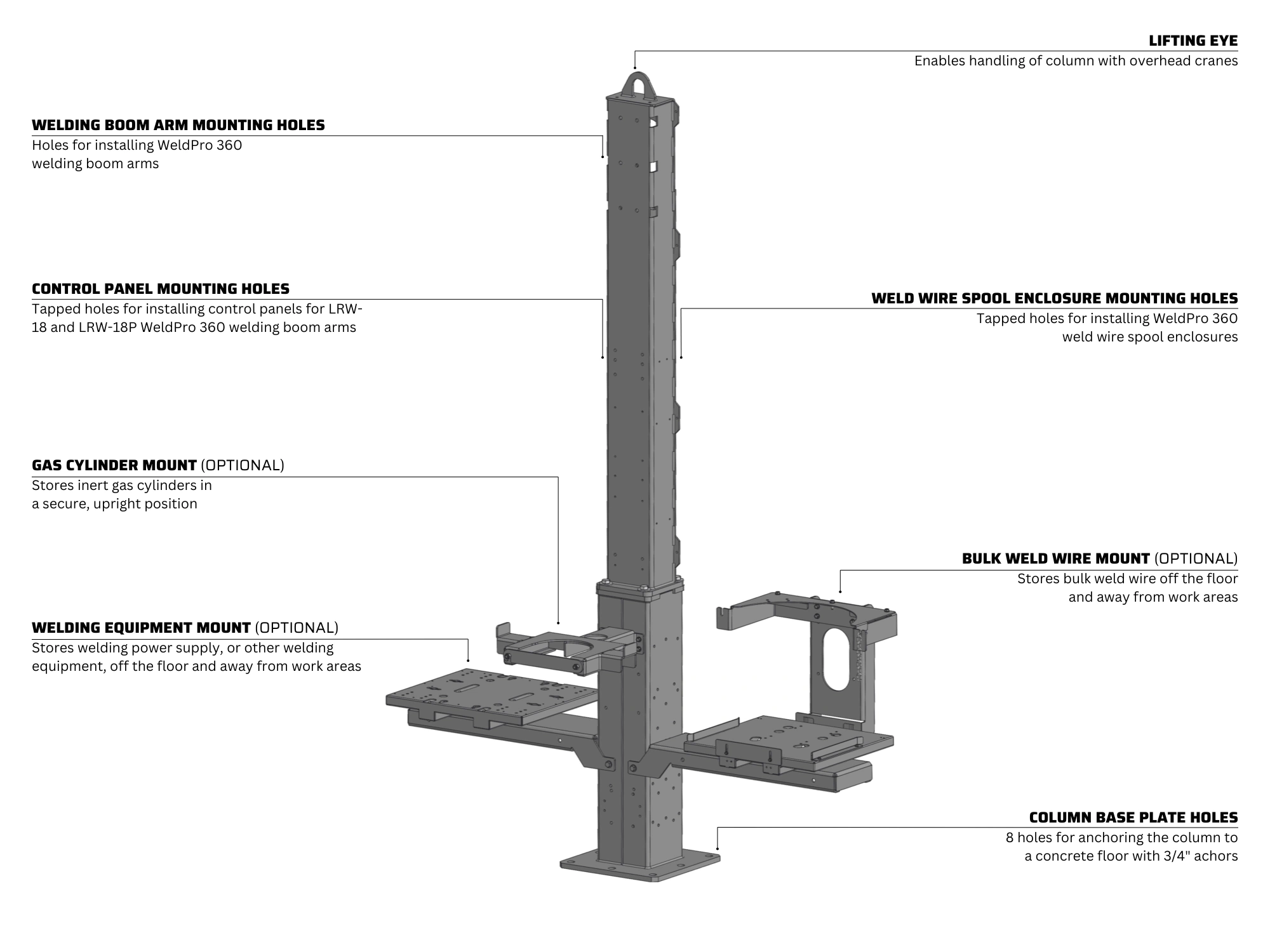

Floor-Mounted Column

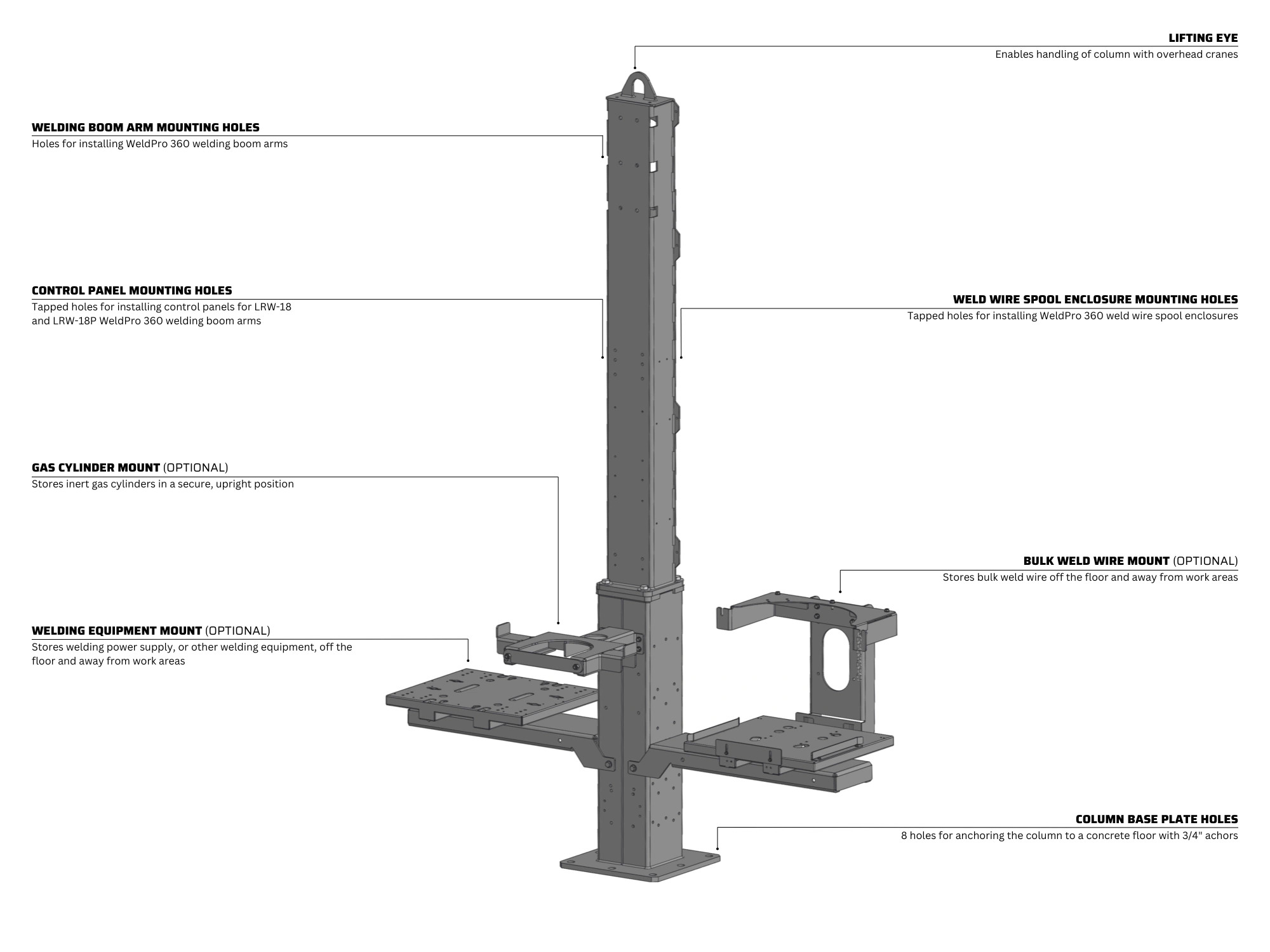

The WeldPro 360 lineup offers pre-engineered, floor-mounted columns—in either 8' or 10' arm heights—that bolt directly to your concrete floor. Available are a full complement of optional bolt-on brackets for mounting all components, allowing customizable installations. This column requires no modifications to the building structure beyond the eight (8) base-mounting epoxy anchor bolts. Its advantages are fast setup, no engineering or fabrication work, and no limitation to existing building column locations. The entire column and each of the high-quality mounting brackets are powder-coated for a finished look and long-term durability.
- Requires only basic hand tools to install.
- Provides fast setup time for your boom arm (can be done in 1–2 days).
- Moving to a new location in the future requires re-anchoring to the floor.
- The column comes with pre-engineered, drilled and tapped mounting locations for all bolt-on options.
- Advantage – well-organized installation with everything off the floor.
Weld Wire Spool Enclosure
Stores weld wire spools in a contaminant-free enclosure. Compatible with 60-lb. spools. Up to two cabinets can be installed on a single column.

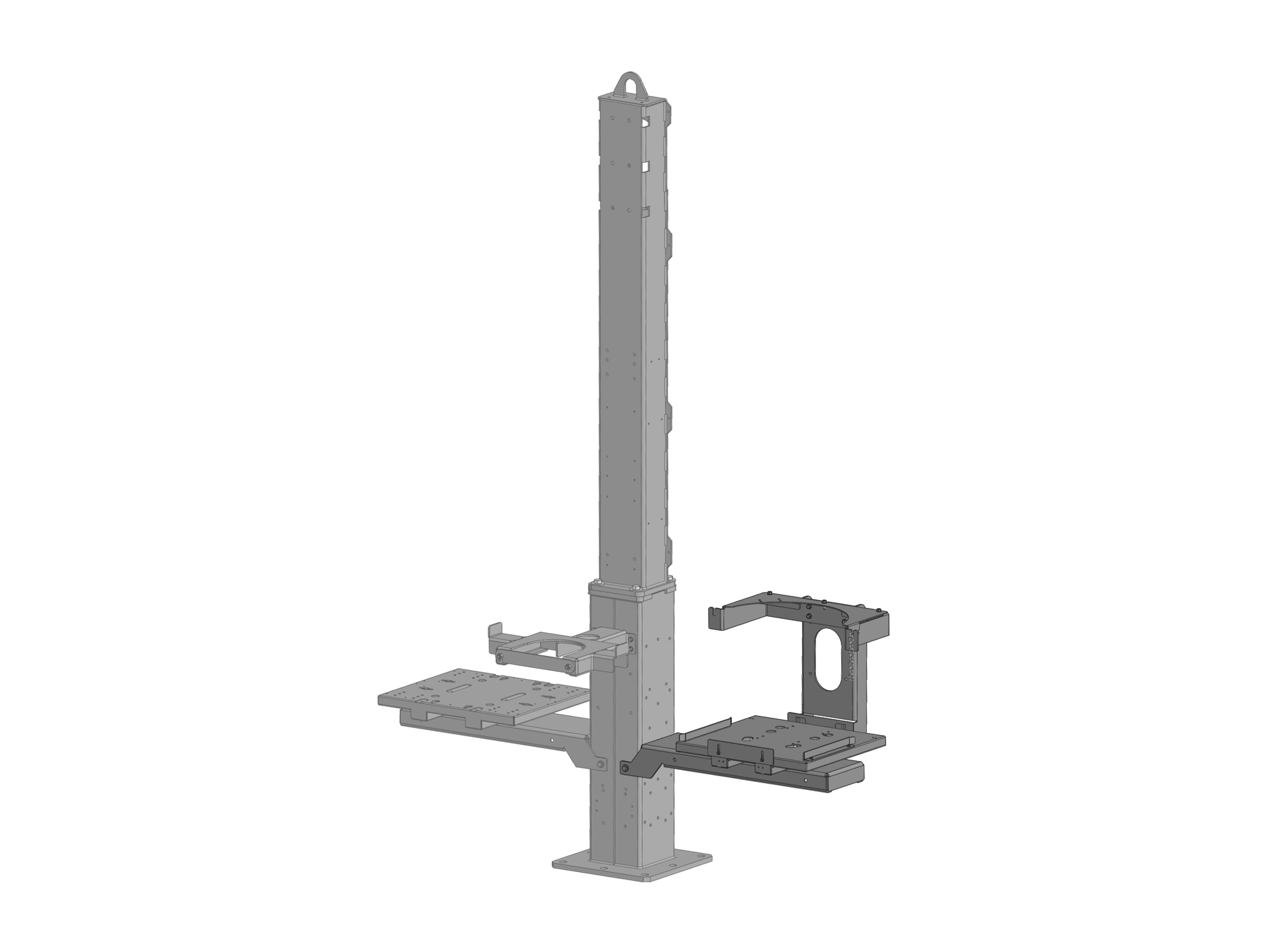

View Product DetailsBulk Weld Wire Mount
Stores bulk weld wire off the floor and away from work areas. Compatible with 500-lb. boxes and drums. Up to two mounts can be installed on a single column.

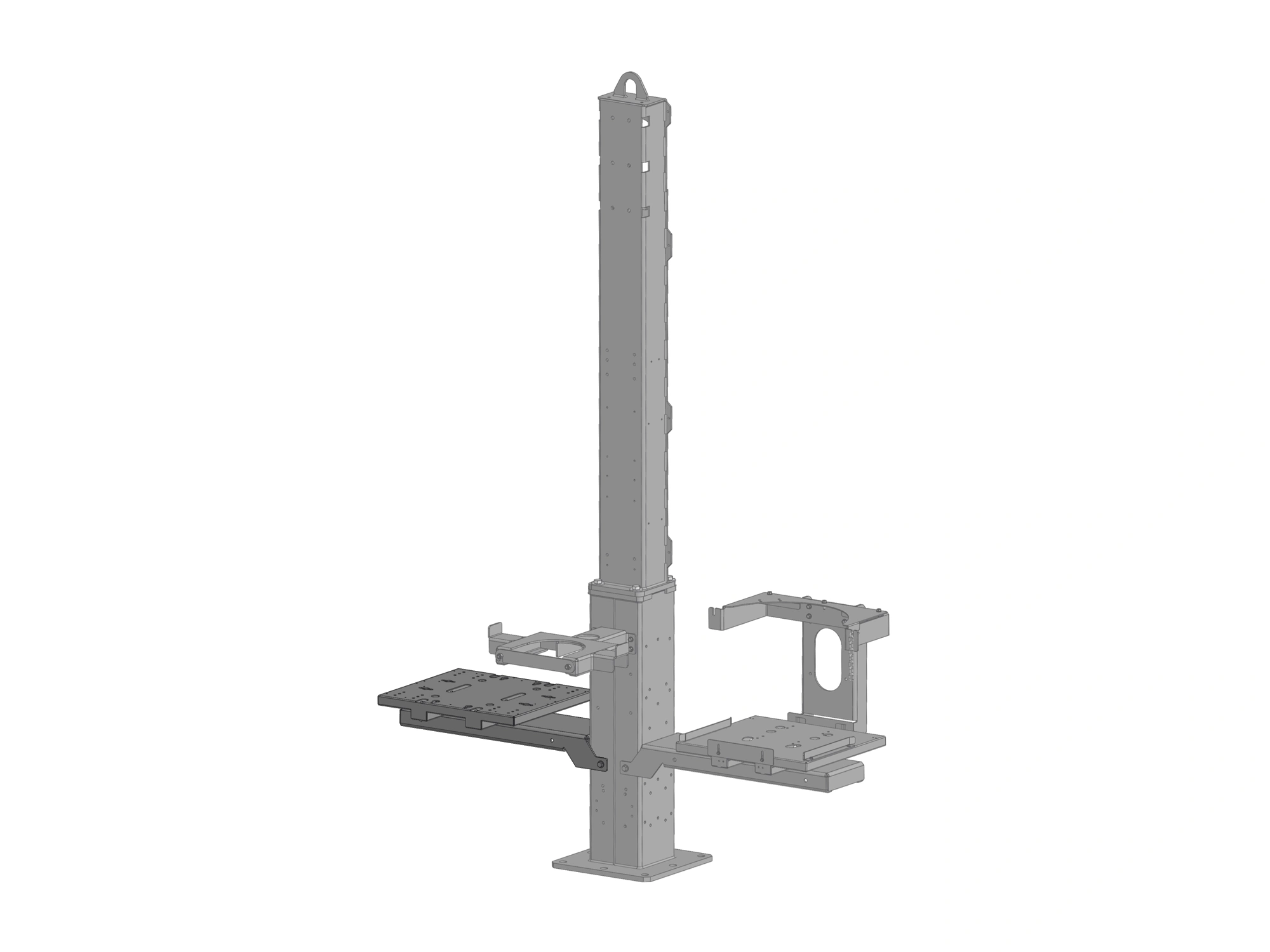

View Product DetailsWelding Equipment Platform
Stores welding power supplies, or other welding equipment, off the floor and away from contaminants. Up to two mounts can be installed on a single column.

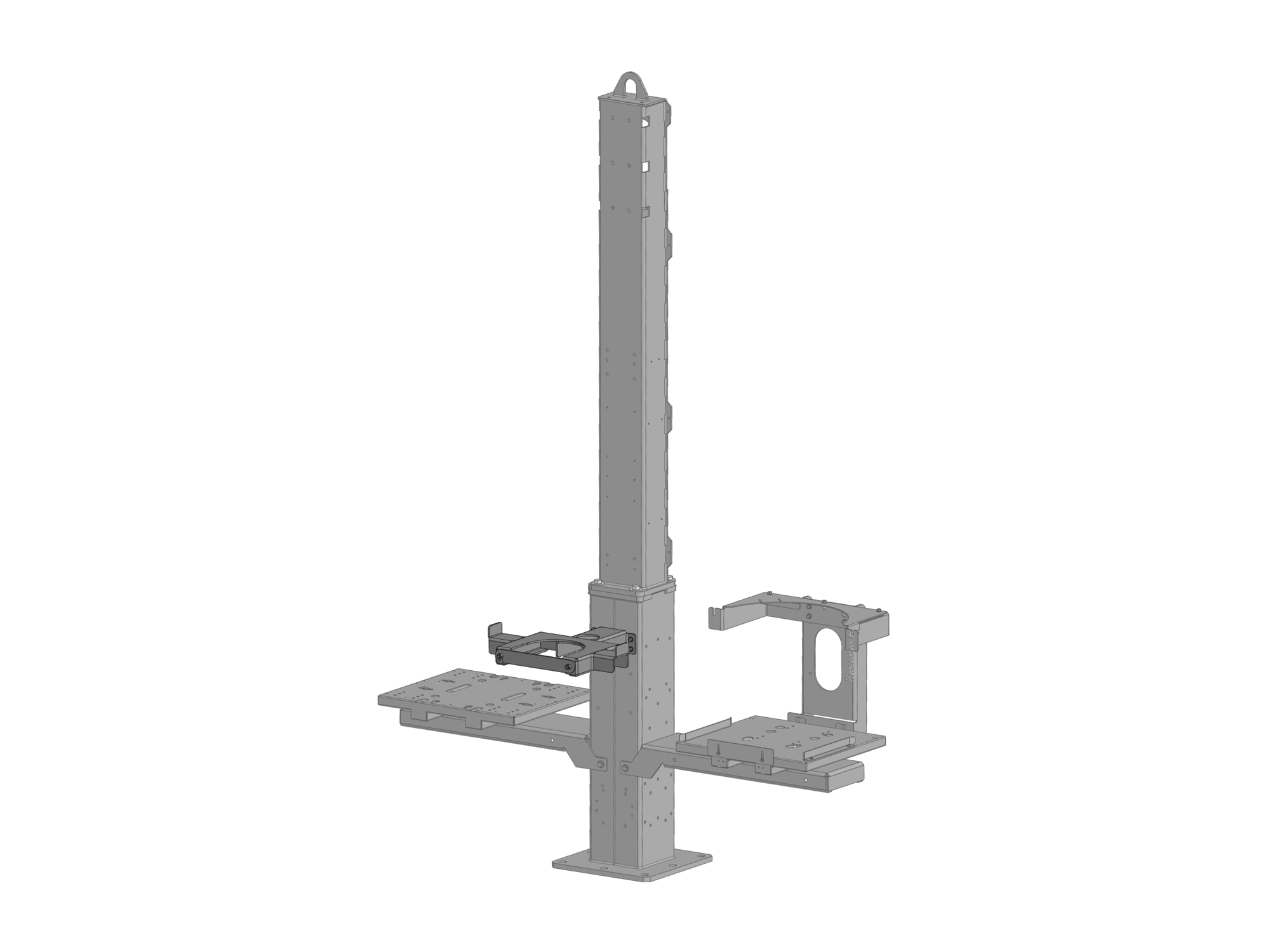

View Product DetailsInert Gas Cylinder Mount
Stores inert gas cylinders in a bracket that keeps them in a secure, upright position. Compatible with gas cylinders up to 9” in diameter. Available in a dual-cylinder configuration to support dual wire feeder setups.

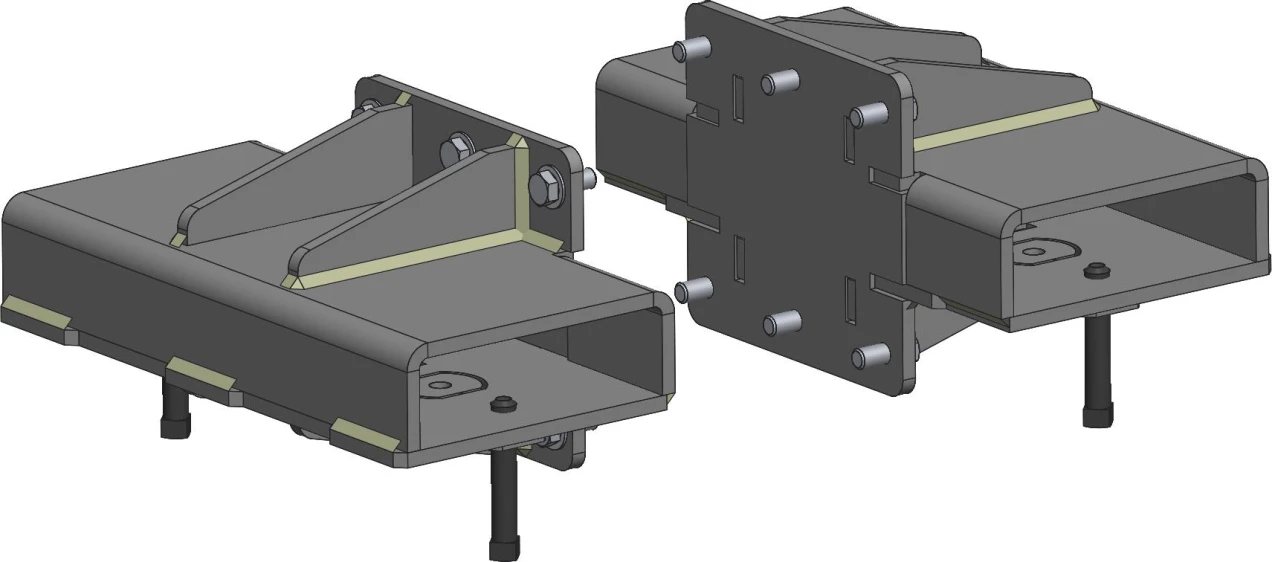

View Product DetailsBolt-On Fork Pockets
Allows Floor-Mounted Columns to be relocated with a forklift for quick installation in work areas with minimal disruption of welding operations.

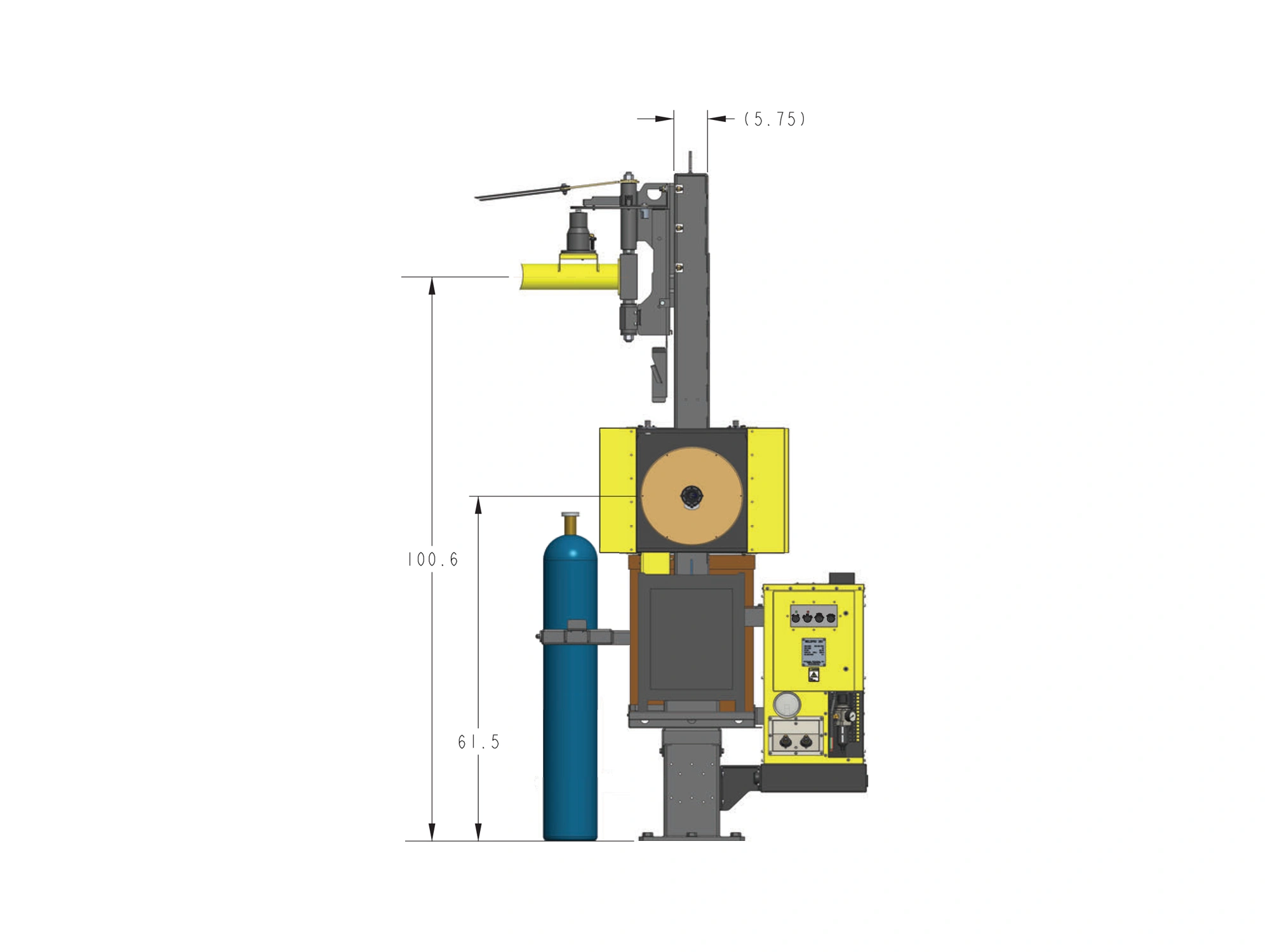

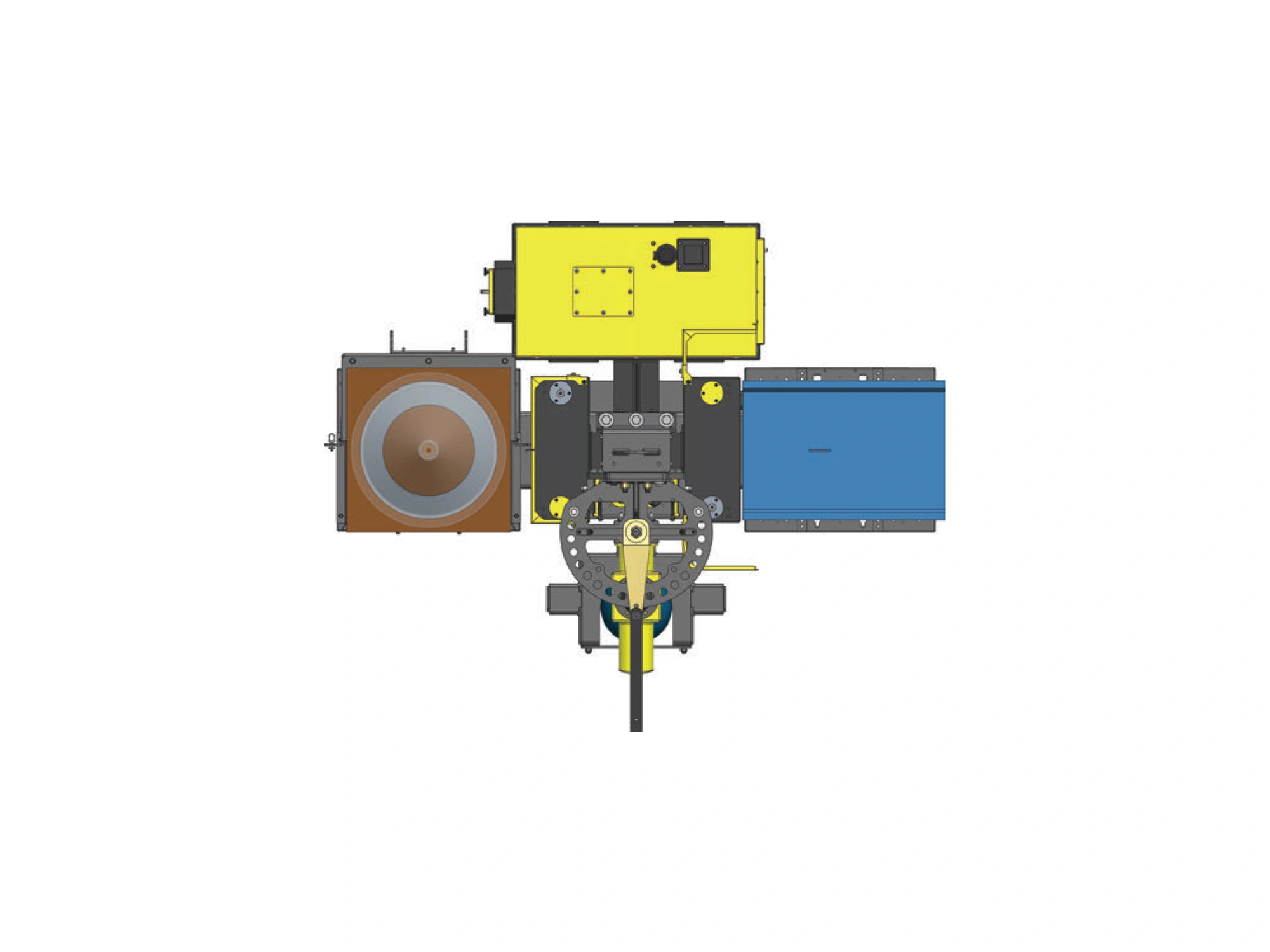

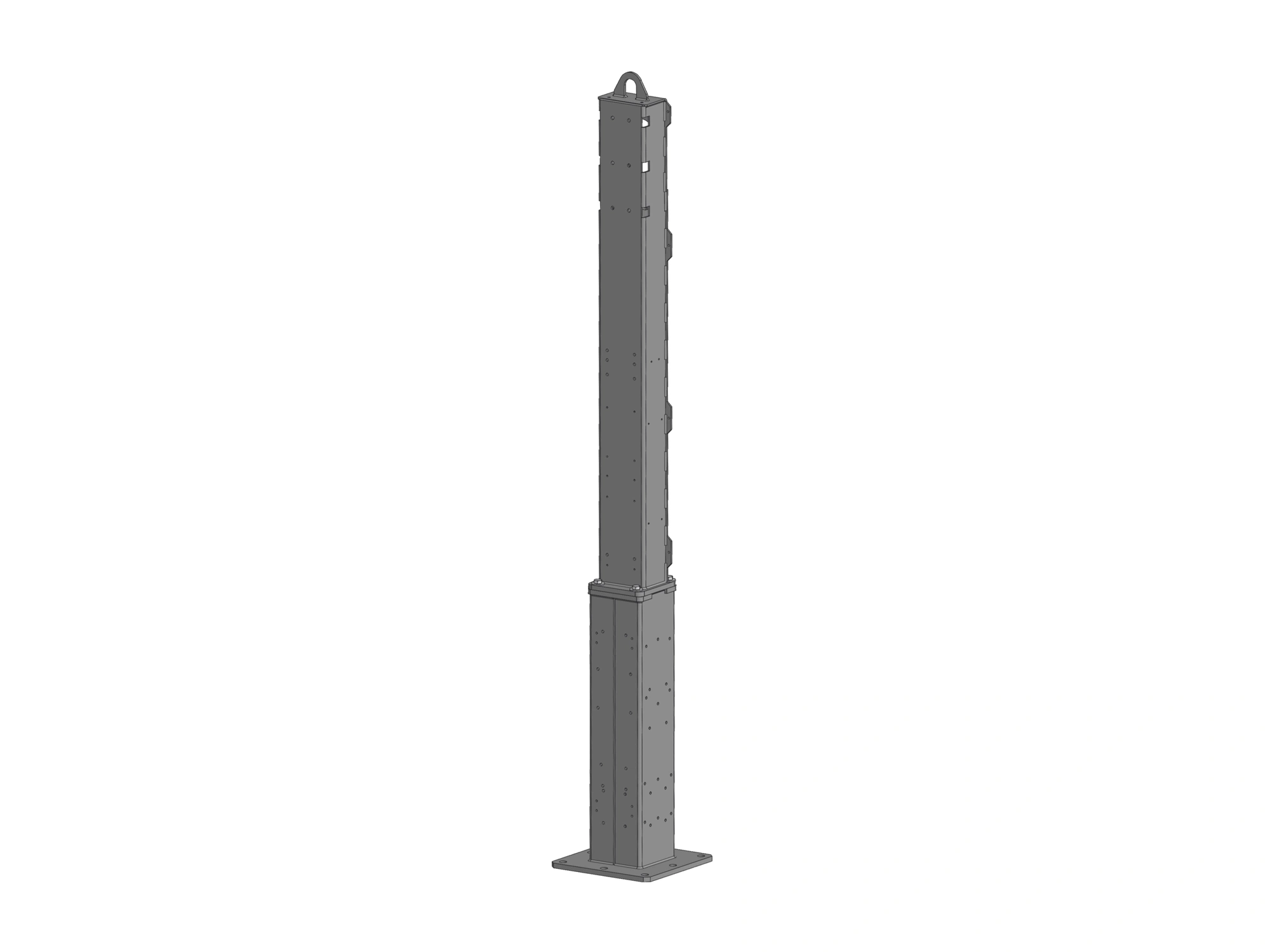

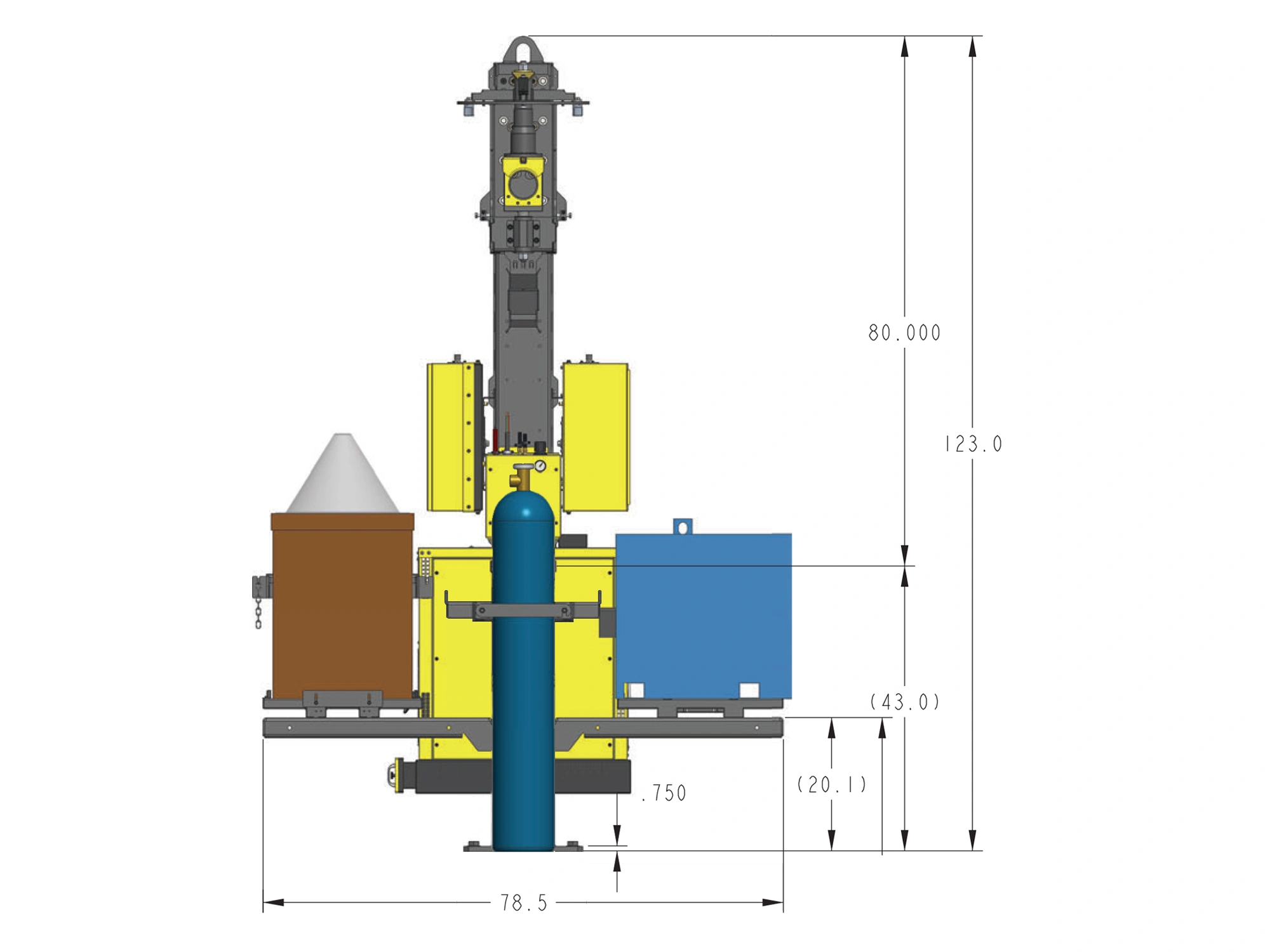

8’ Floor-Mounted Column
This column sets a mounted LRW MIG welding boom arm at a height of 96”. We recommend this size for LRW-18 and LRW-10ML welding boom arms.

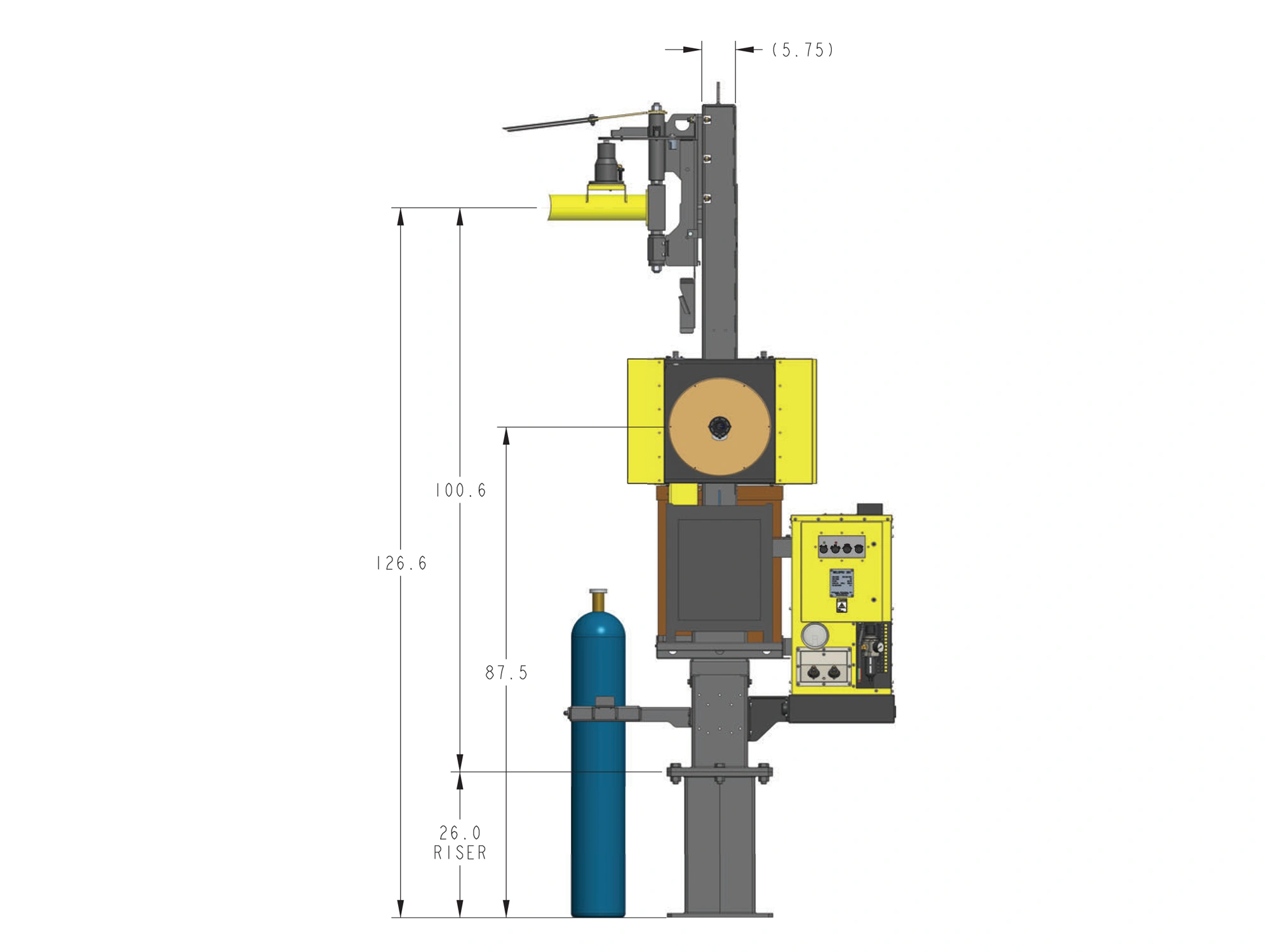

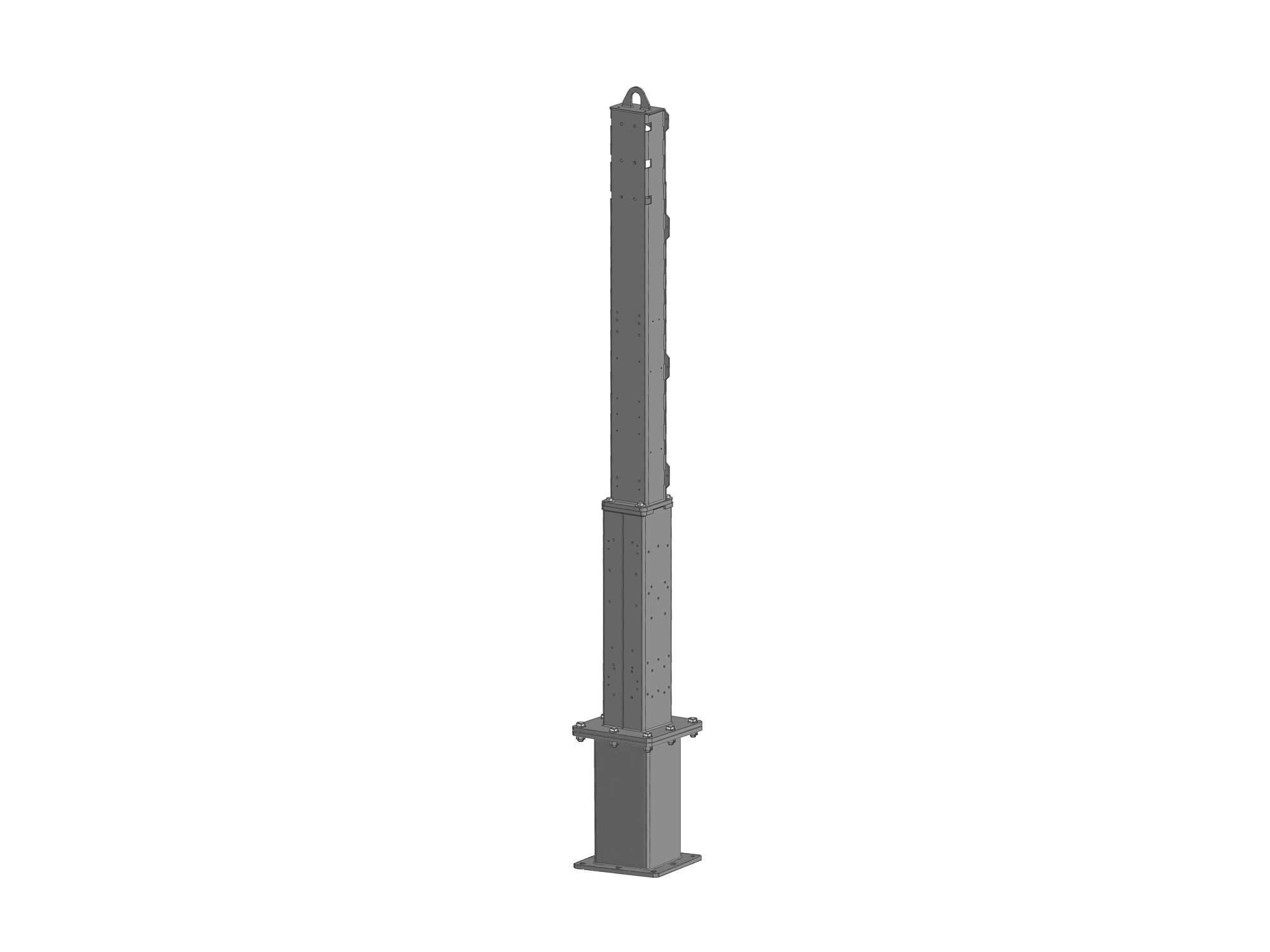

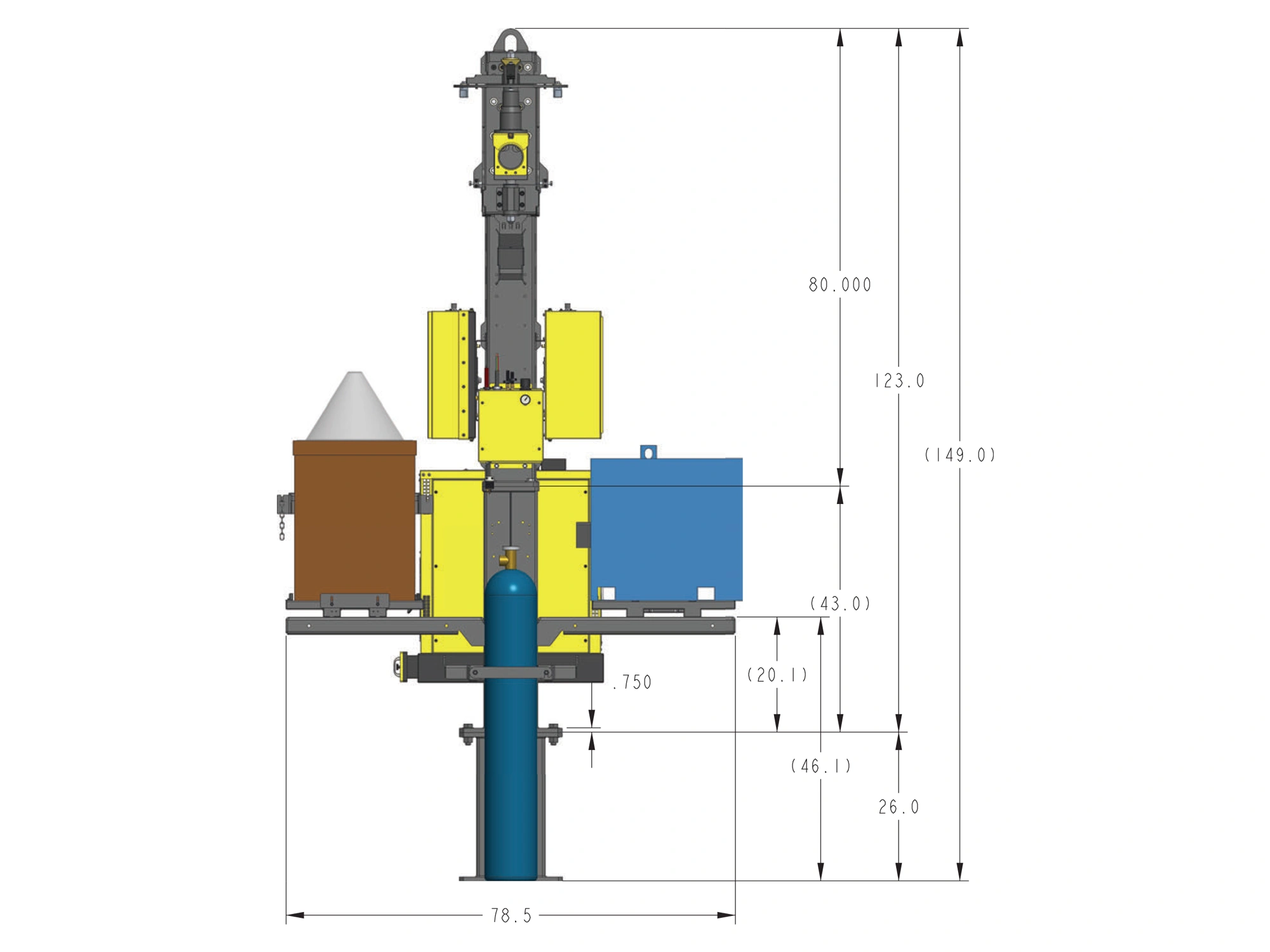

10’ Floor-Mounted Column
This column sets a mounted LRW MIG welding boom arm at a height of 120”, allowing for greater clearance over tall weldments. We recommend this size for LRW-18P welding boom arms.
