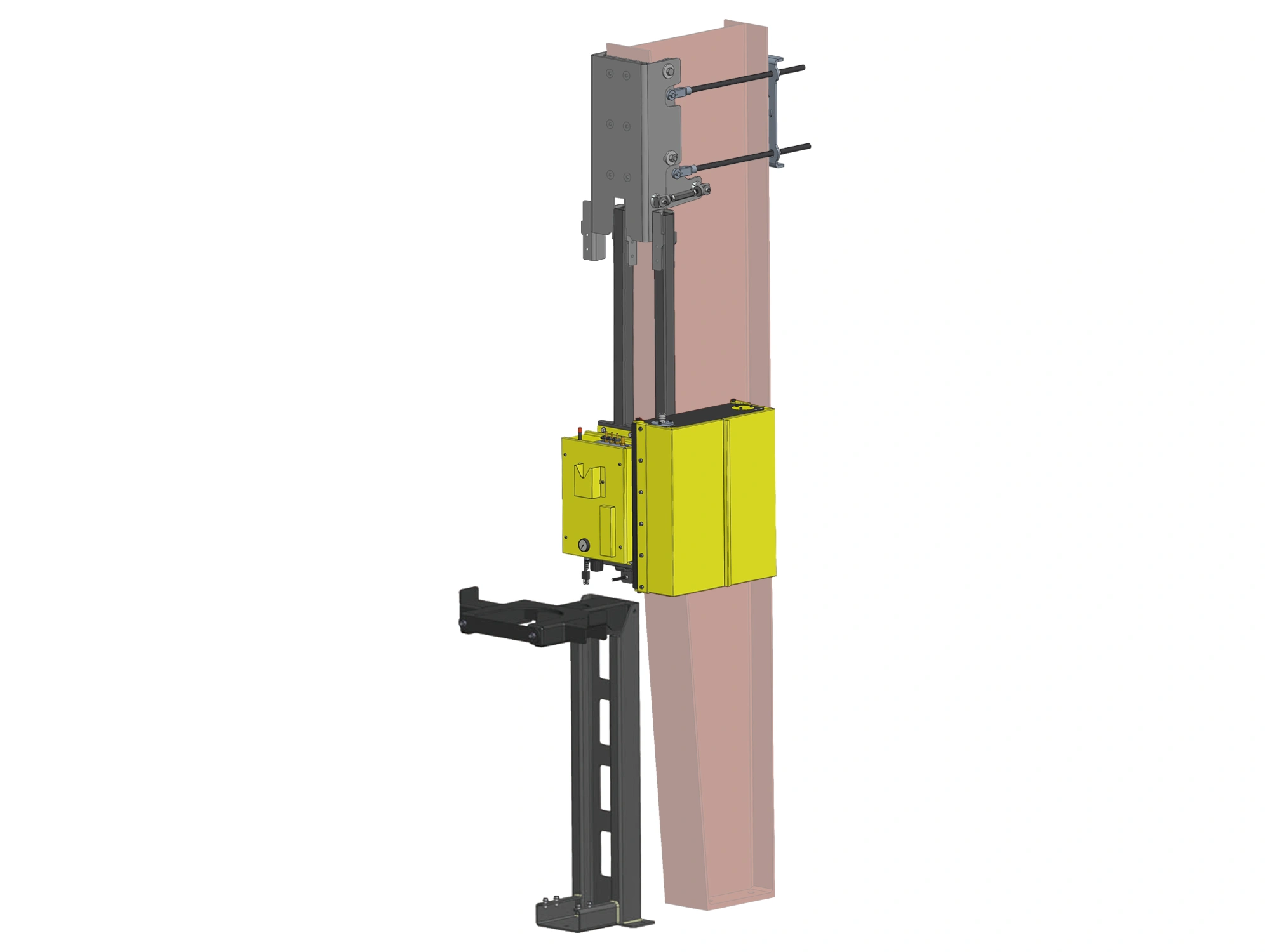

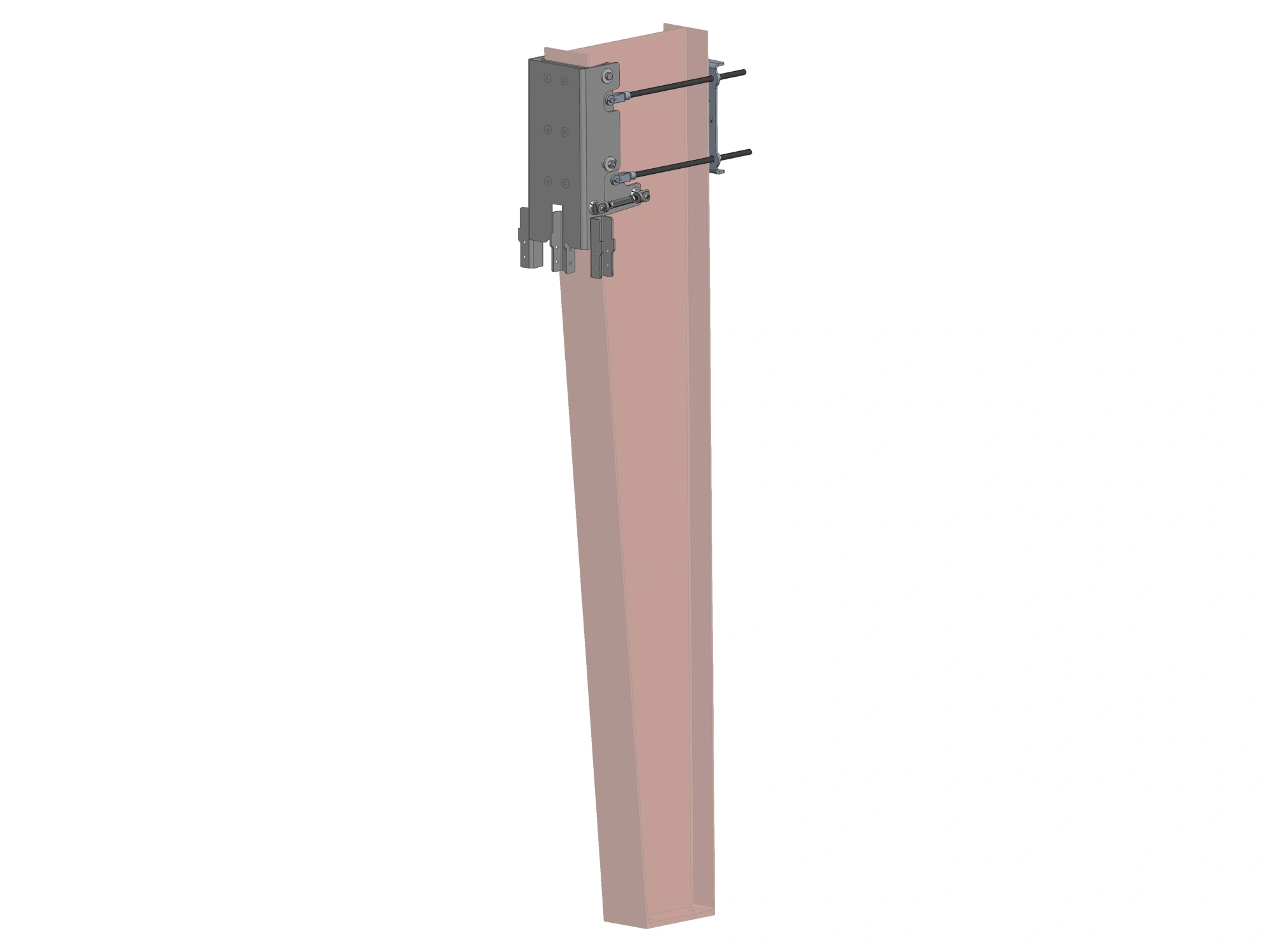

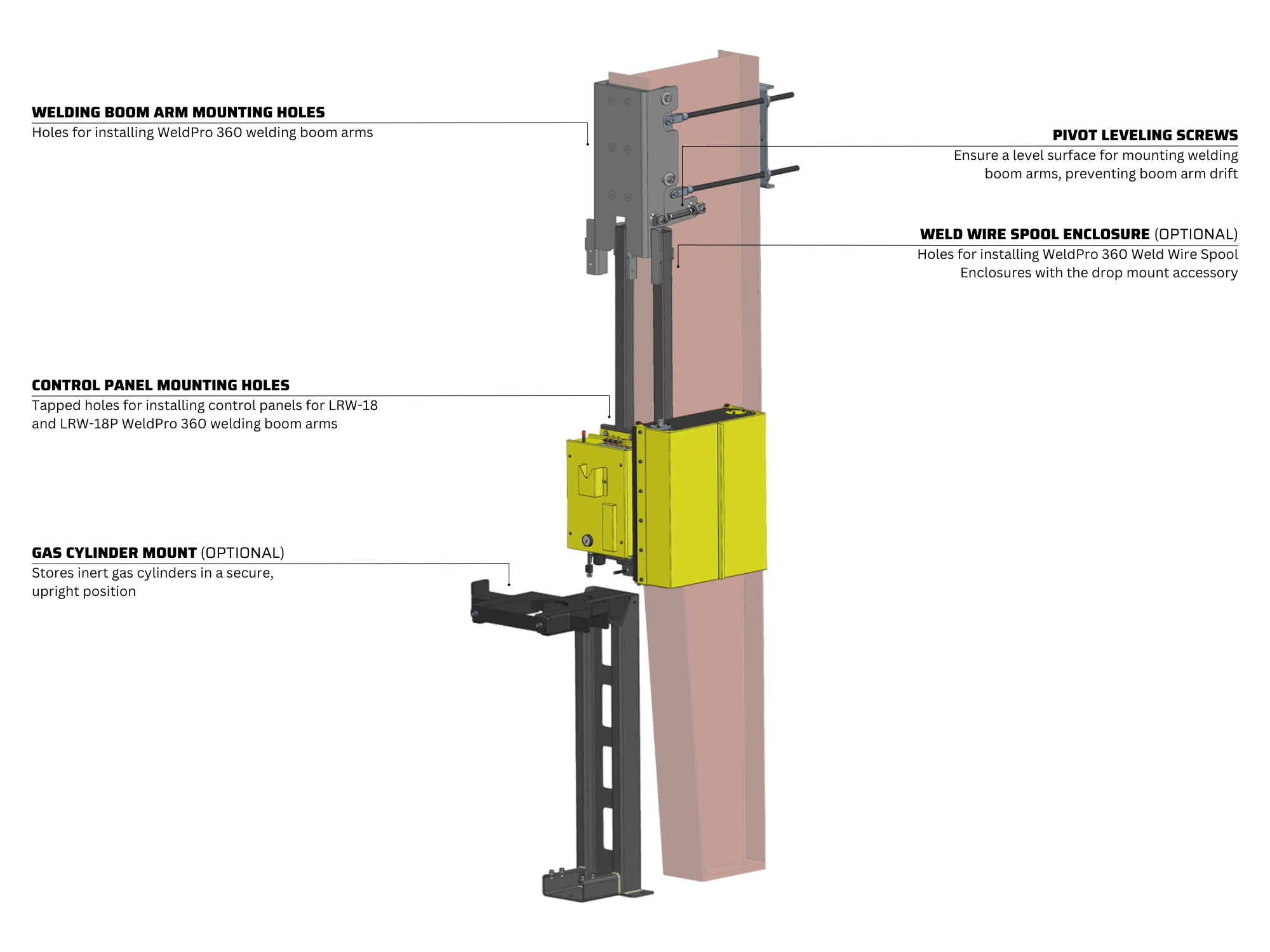

Tapered Column Mount
The WeldPro 360 lineup offers a universal bolt-on bracket to mount your boom arm and several auxiliary components to an existing tapered building column. The boom pivot mounting bracket is designed to quickly bolt to the column in a clamping action (requires six ½” drilled holes in the beam flange, in addition to the clamping action). These high-quality, powder-coated brackets make for a quick and secure installation of your welding boom with no engineering or fabrication work required.
- Brackets are universal and mount to all standard tapered column sizes.
- The clamp-on design provides for minimal modification to the building column.
- Requires only basic hand tools and a hand-held drill to install.
- Provides the fastest setup time for your boom arm (can be done in less than one day).
- Easily moved to a new location in the future if requirements change.

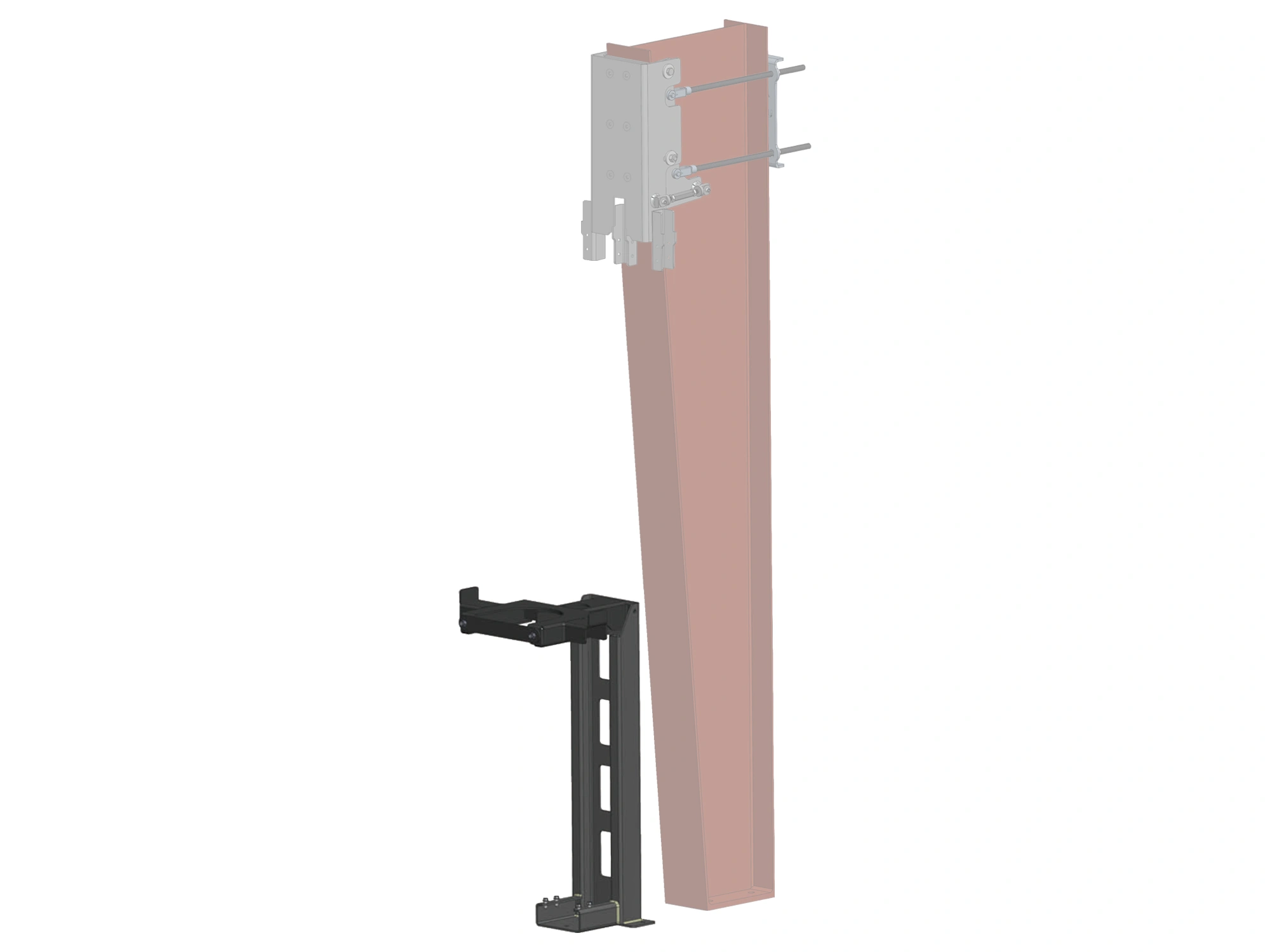

Inert Gas Cylinder Mount
Stores inert gas cylinders in a bracket that keeps them in a secure, upright position. Compatible with gas cylinders up to 9” in diameter. Available in a dual-cylinder configuration to support dual wire feeder setups.

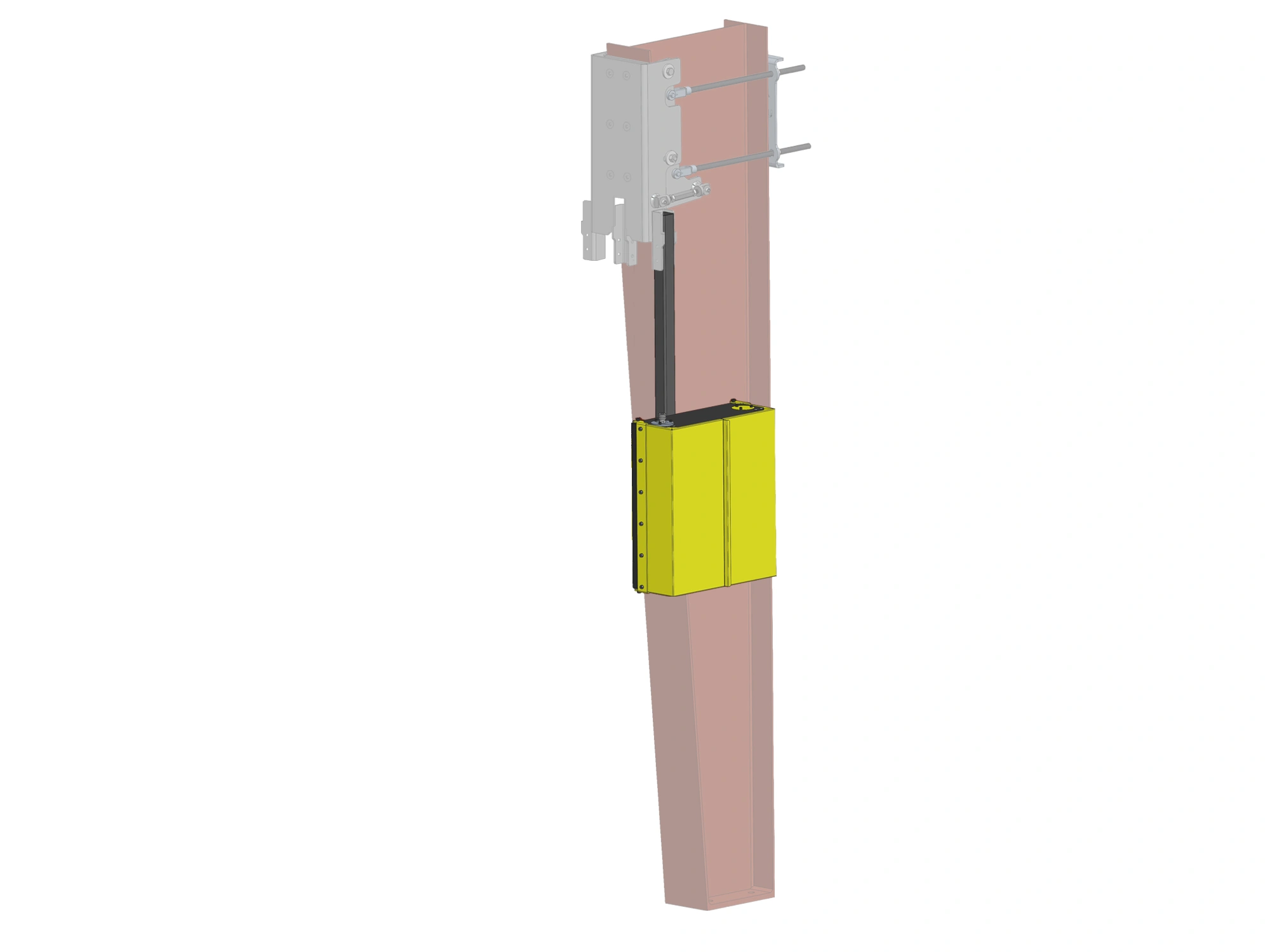

View Product DetailsWeld Wire Spool Enclosure
Stores weld wire spools in a contaminant-free enclosure. Compatible with 60-lb. spools. Up to two cabinets can be installed on a single column.
View Product DetailsColumn Flange Width
- Max. Flange Width: 8.00”
- Min. Flange Width: 5.00”
Column Taper Angle
- Max. Column Taper: 1.50” per foot
- Min. Column Taper: 0" per foot (true vertical face)
Boom Arm Mounting Height
Centering the top mounting holes at 116.5” allows the boom arm to clear 96”.
